Description

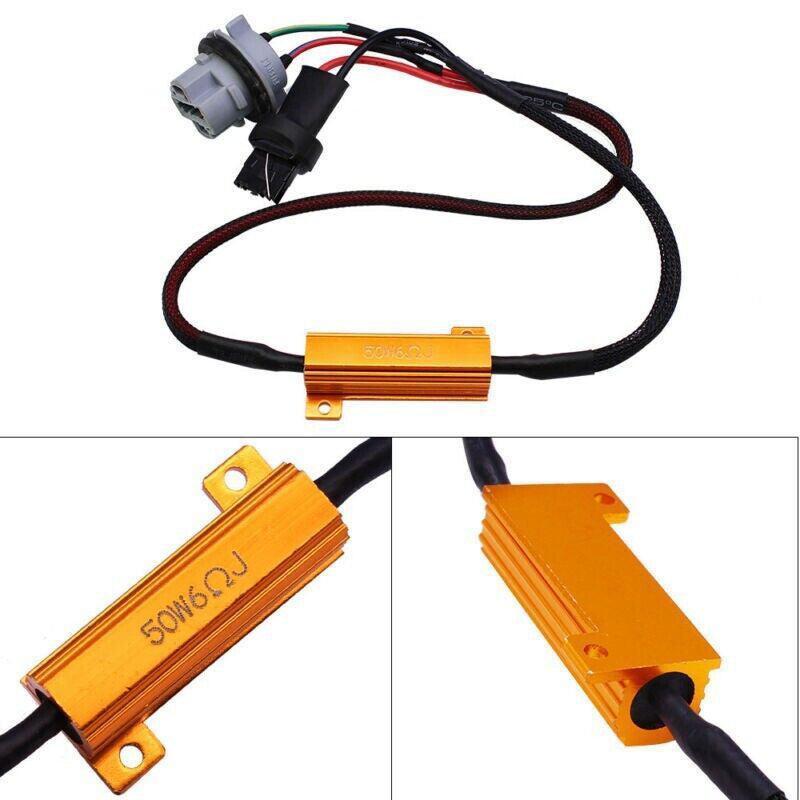

- 4X LED Load Resistor(+8x T-Taps)

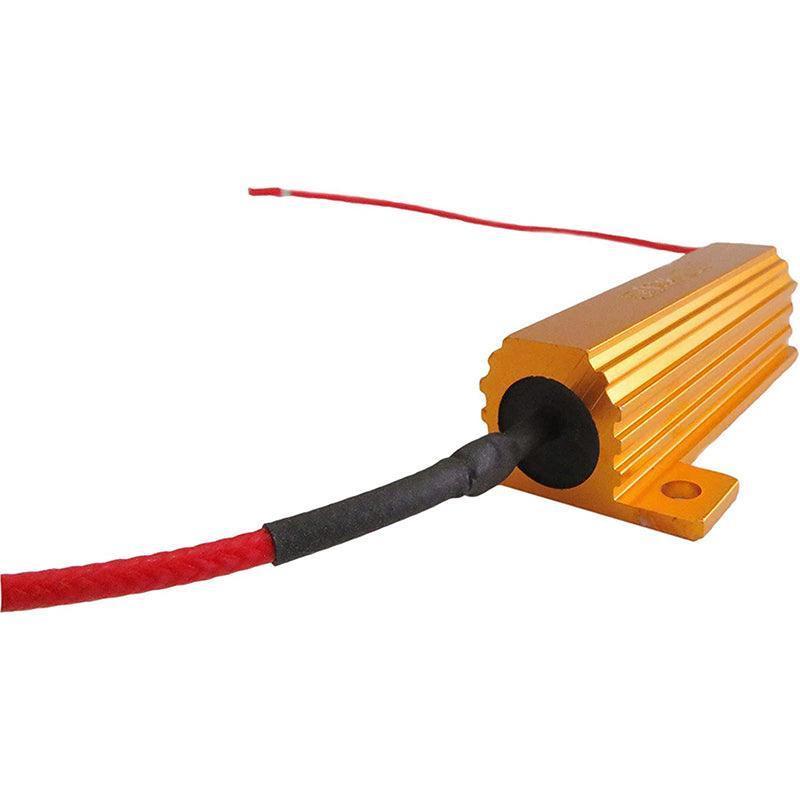

- These 6 Ohm, 50 Watt resistors can be connected across the indicator bulbs to simulate the load of a normal incandescent bulb.
- Solution for "bulb out signal" / "OBC error message" after installing SMD LED bulb
- Solution for fast flasher response after installing SMD LED bulb
- Installation is easy. Just connect the wires with the provided splice taps, no wire cutting necessary
- Universal fit, this product will fit any car, SUV, 4wd or truck.
- Simply tap the load resistors between the positive and negative wires of the turn signal bulb and this will solve LED-related turn signal problems such as hyper flashing, no flashing or burnt out bulbs.
- Power: 50W
- Resistance: 6 ohm
- Dimensions: Approx. 5 x 2.2 x 1.7 cm (1.97 x 0.9 x 0.6 inch)
- Connection Instruction:
- One resistor is required for each LED indicator bulb. Connect one wire to the ground and the other to the turn/brake wire. You can use the T-connectors so that you do not have to cut your car's wiring.
- A load resistor is required for each indicator bulb. For more details please refer to the wiring diagram in our product picture.
- Note:
- These load resistors may get Hot. Please mount them on a metal surface and not in contact with any plastic parts.
- Common Part Number Cross Reference Part Number :
1157 BA15s 1016 1034 1076 1130 1154 1157 1158 1493 2057 2357 2397 7528 1156 BAY15d 1073 1093 1129 1141 1156 1159 1295 1459 1619 1651 1680 7506 S25 7527 7507 BAU15s PY21W 7443 7444 7443 7441 7440 T20 7440 992A 7440 (A refers to Amber) T20 3157 3057 3155 3357 3457 4157 3156 3056 3456 4156

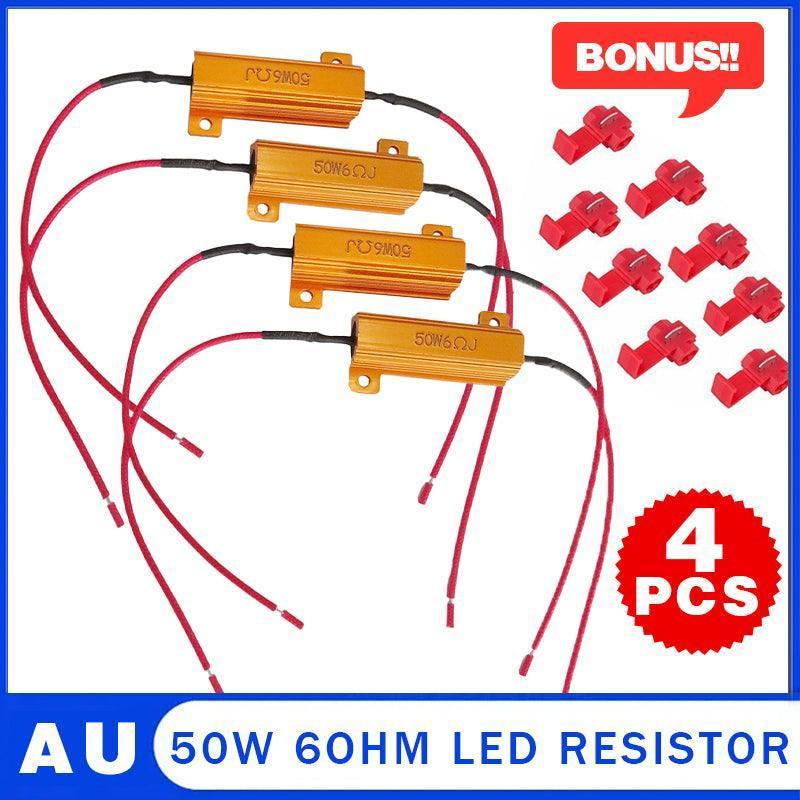

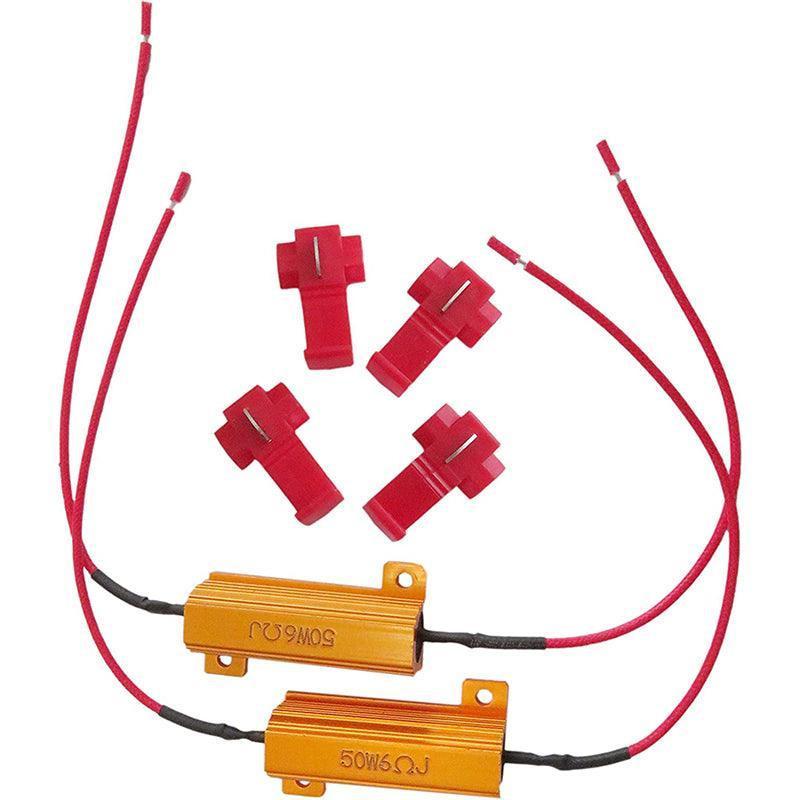

Package:

- 4 x Load Resistor
- 8 x T-Taps

Notes:

1. Please allow slight chromatic aberration in the photo
2. Due to manual measurement, the size may deviate
