Description

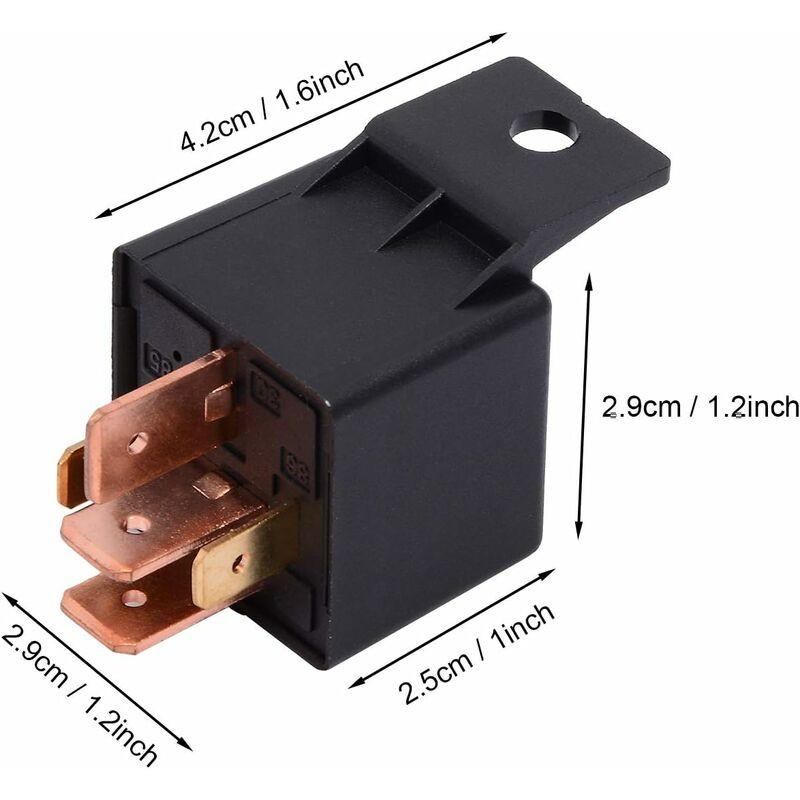

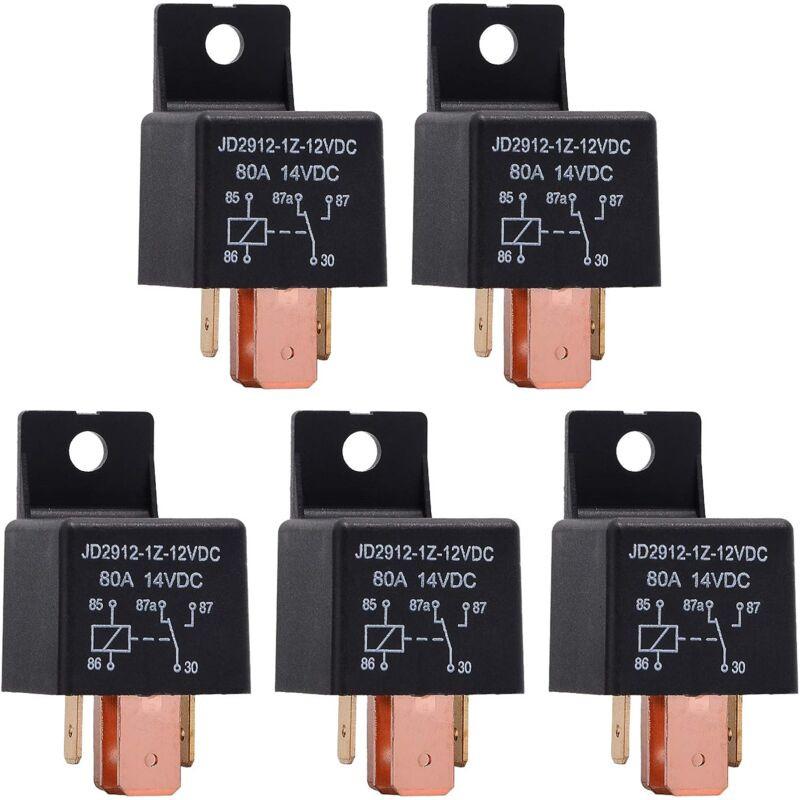

Brand new heavy duty SPDT relays 12 Volt 80 Amp 5 pin relays Mechanical life of 100,000 cycles These are heavy duty 80A relays.

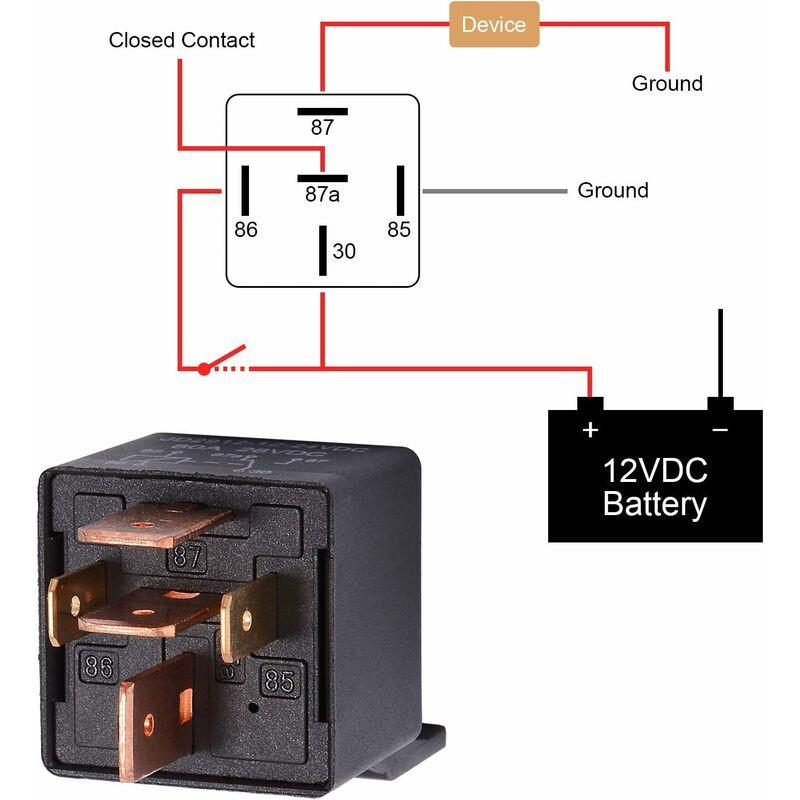

This kit can be used to install electric fans, electric fuel pumps, electric water pumps, door handle solenoids, trunk solenoids, horns.

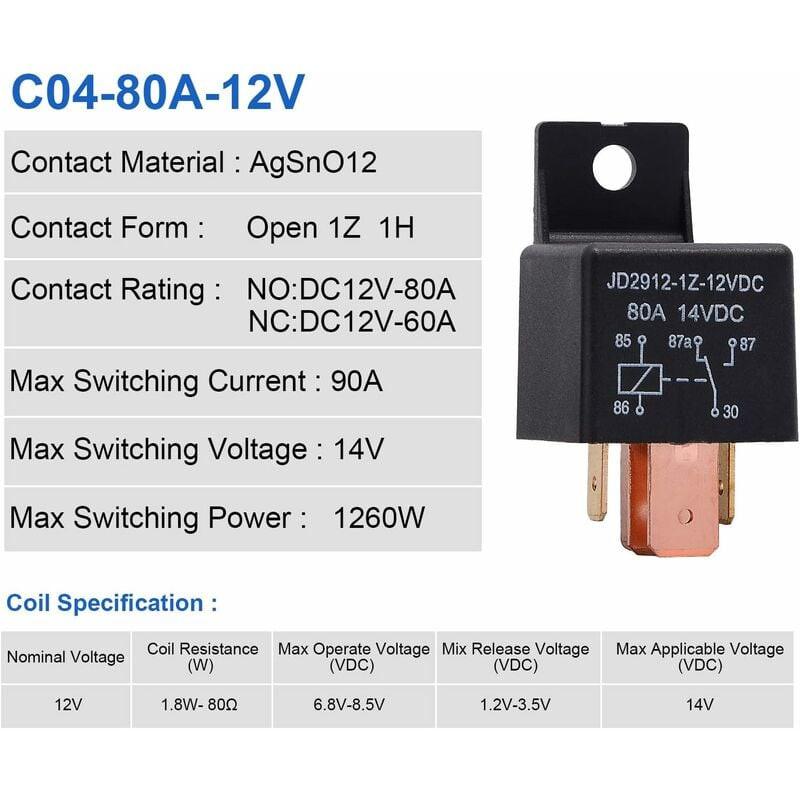

- Using this kit will eliminate a large voltage drop in the wire, it allows your components to work properlyContact Data: Contact Material: AgSnO12 Contact Form: 1Z(C)/1H(A) Contacts Ratings: No: 80A 14VDC Contact Resistance: 100mMax at 6VDC 1A Max Switching Current: 80A Max Switching Voltage: 75VDC Max Switching Power: 80A Electrical Life Expectancy: 100,000 operations (at 30 operations/min) Mechanical Life Expectancy: 10,000,000 operations Coil Specification: Nominal Voltage (VDC): 12V Coil Resistance (of 1.8W): 80 Max Operate Voltage (VDC): 6.0~8.0 Output Mix (VDC): 1.2~3.6 Max Applicable Voltage (VDC): 15.6 Features: Temperature Range: -30°C~+ 80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Extreme Operations: 10g Damage Limitation: 100g Humidity: 40%~85% Insulation Resistance: 100m? Min at 500Vdc Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Between Contact and Coil: 750VAC (for one minute/sec) Operate Time: 7ms Release Time: 5ms Weigh: Approx
35g.
