Description

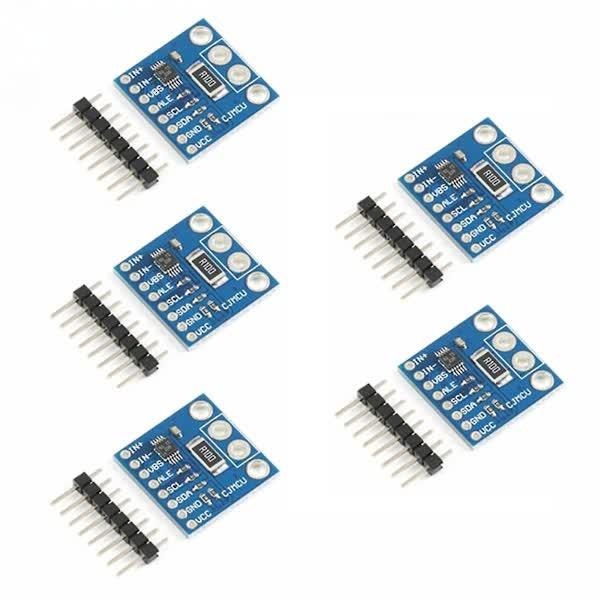

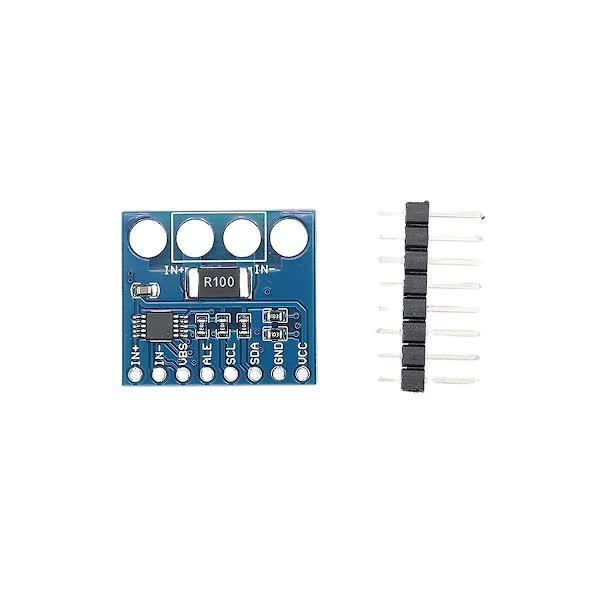

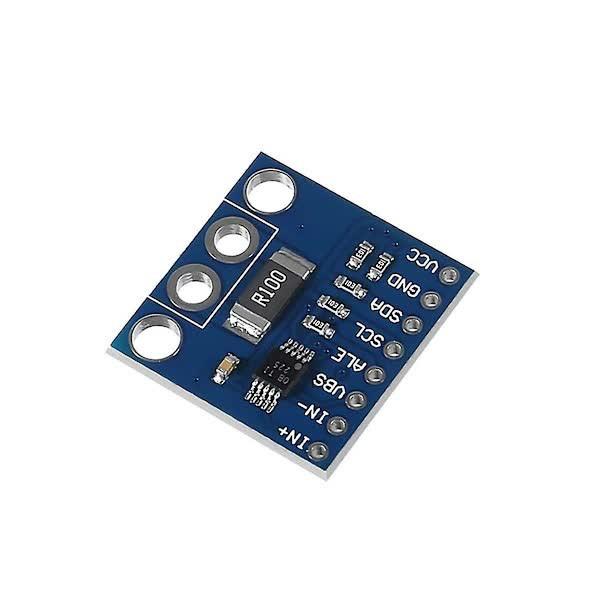

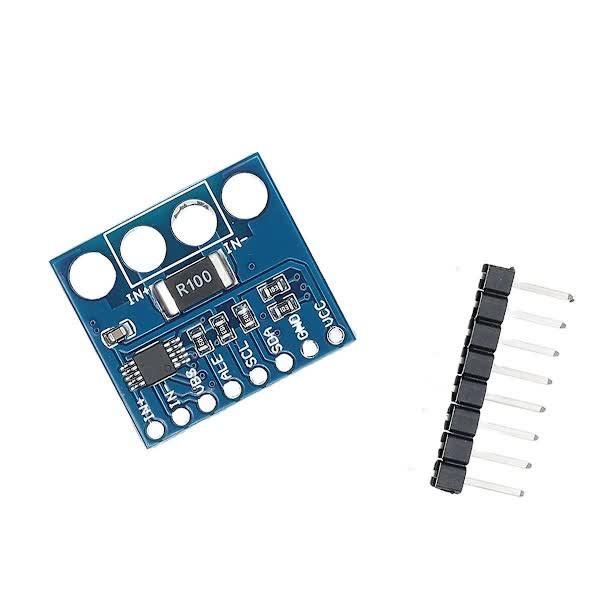

The INA226 is a current-voltage sensing and power measurement device with an I2C or SMBUS compatible interface. The device monitors both the voltage drop across the shunt and the bus voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, allow for direct readings of current in amps and power in watts. The INA226 senses current on common bus voltages that can range from 0 V to 36 V, of the supply voltage. The device operates from a single 2.7 V to 5.5 V supply and typically draws 330 A of supply current. The device is specified over the operating temperature range of -40°C to 125°C and has up to 16 programmable addresses on the I2C-compatible interface. CJMCU - 226 - supports alarm function for 36 V, bidirectional, high-precision, low-side and high-side power measurement, I2C output current. The highest INA226 interference voltage of 10 microvolts (uV), the largest gain error is 0.1%, the accuracy is 10 times higher than industry-leading competitive products. This device is a complete 16-bit single-circuit solution, to number the I2C interface for current, voltage and power to provide comprehensive programmable measurement. INA226 for servers, computers, telecommunications equipment, power line equipment and test equipment design personnel with great advantages, can fully meet the requirements of accurate power measurement. The factory print batch number is different. Color: Blue Material: PCB Package Contents: 5 x Current Monitoring Sensor Module 5 x Pin Only the above package contents, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture to be slightly different from the real thing. The measurement allowable error is +/- 1-3 cm. Returns, Refunds and Replacements Products that are received faulty, damaged, or not as described are eligible for a return, refund, or replacement in accordance with the Australian Consumer Law (ACL). We are committed to ensuring all products meet the standards of quality and reliability expected by our customers. However, please note that we do not accept returns or provide refunds for change of mind. We encourage you to carefully consider your purchase to ensure it meets your needs and expectations. Delivery Timeframe Please note that we cannot guarantee the exact date of arrival, and the delivery timeframes (excluding weekends and public holidays) are as follows: For customers in Victoria, approximately 7-10 working days; For customers in NSW, SA, ACT, and QLD, approximately 9-12 working days; For customers in WA, NT, and TAS, approximately 9-12 working days.
