Description

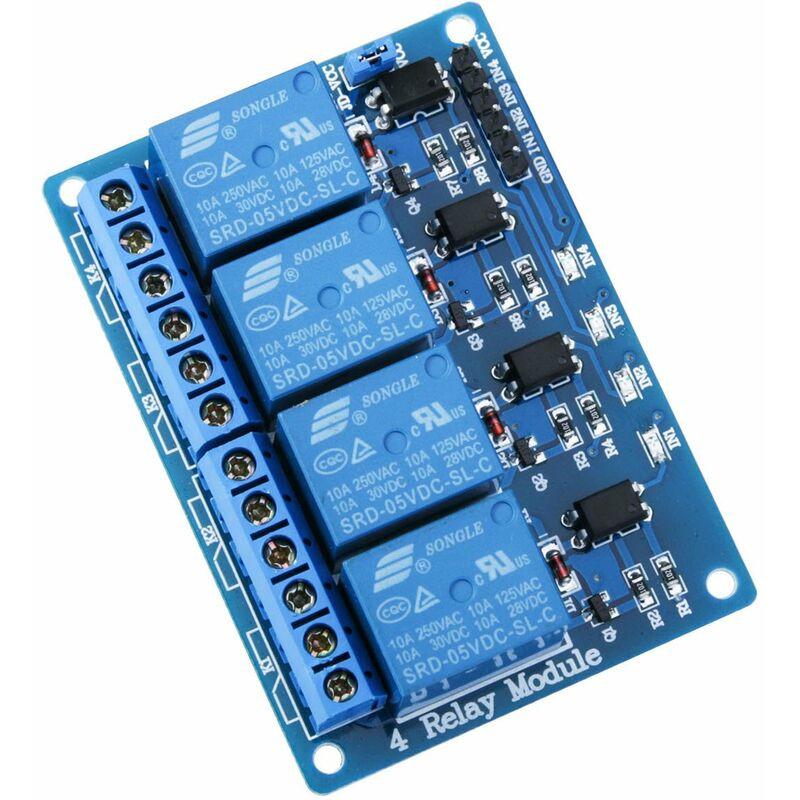

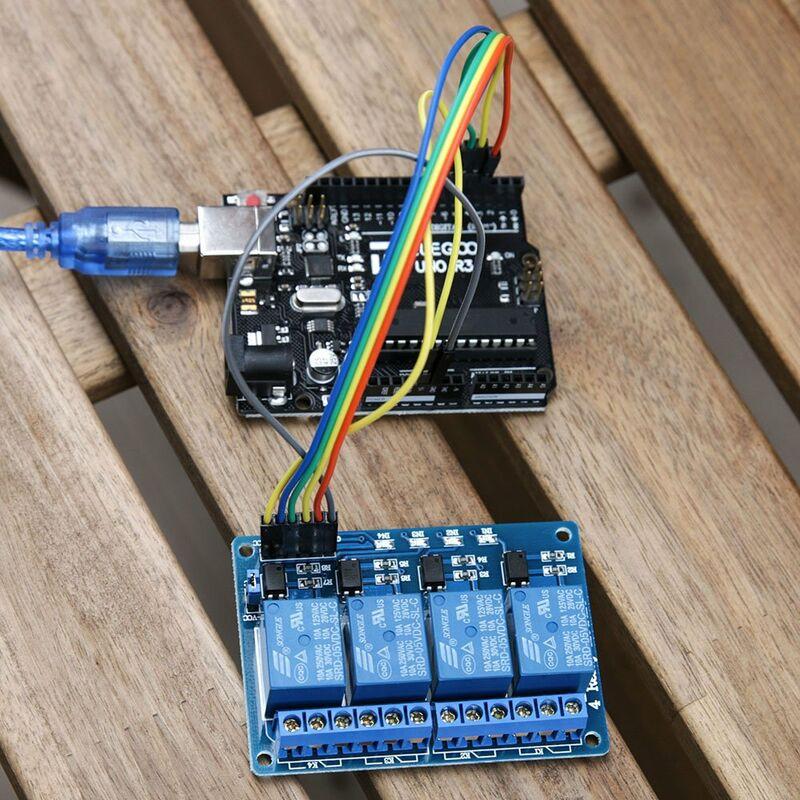

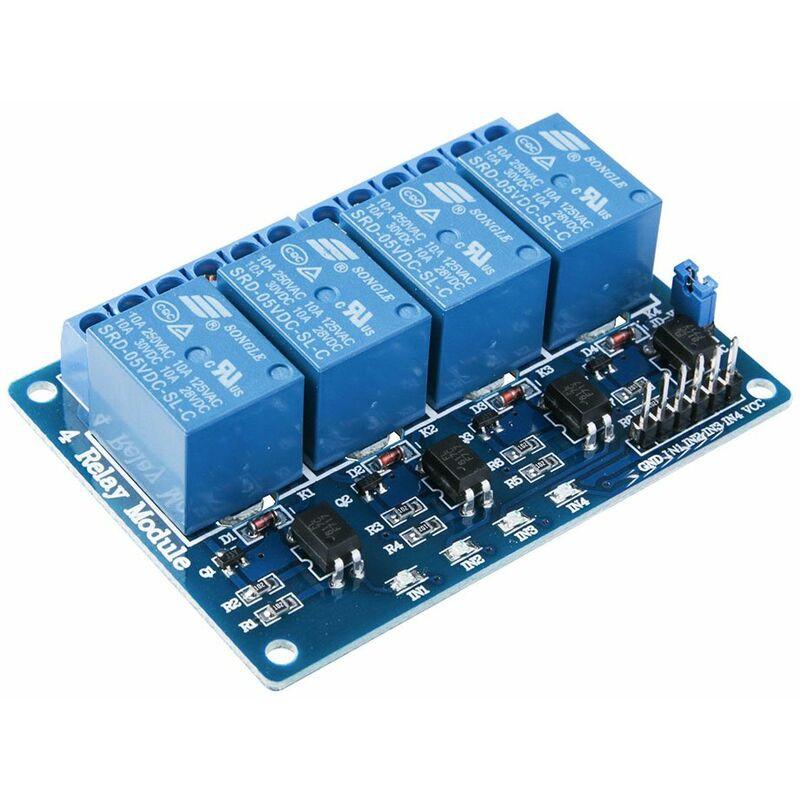

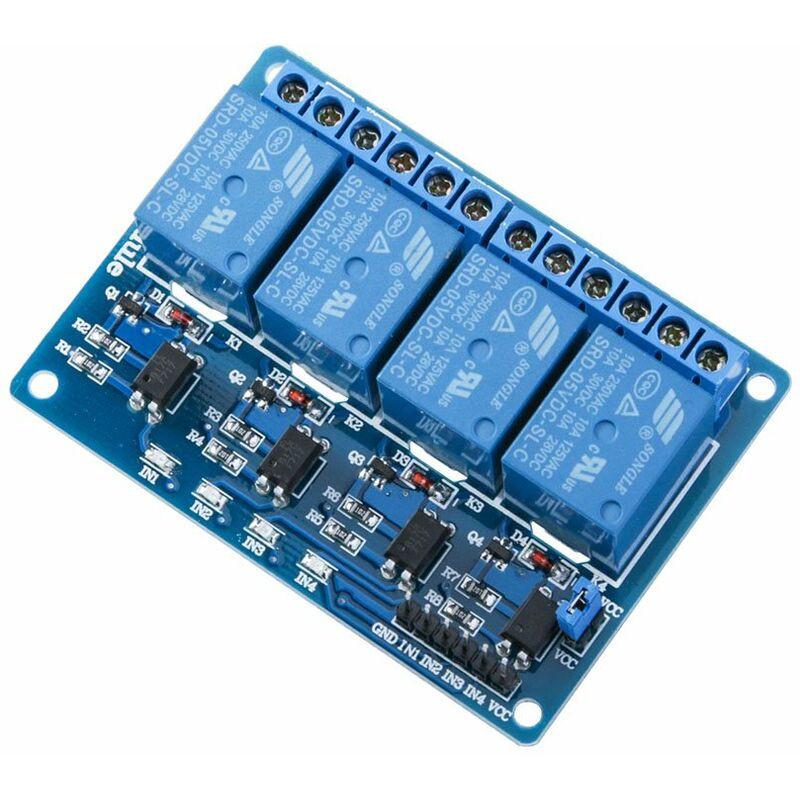

This relay module is 5V driveable, It can drive maximum 10A under 250V AC and 10A under 30V DC Standard interface can be directly controlled by microcontroller Indicator light to indicate whether the relay is conducting or not to work safely The 4 channels have its own interface which can be directly controlled by a wide range of microcontrollers such as AVR, PIC, ARM, PLC, ect.
This makes it possible to control various devices and equipment operating with high currents Widely used for all MCU control, in the industrial sector, PLC control, home automation 8 Channel DC 5V Relay Module with Optocoupler Available switching capacity of 10A despite the small size design for high density PC.
PCB mounting technique.
UL, TUV recognized.
Selection of plastic material for high temperature and better chemical solution performance.
Sealed types available.
Simple relay magnetic circuit to meet the low cost of mass production.
Widely used for household appliances, office machine, audio, equipment, automobile, etc.
- (Remote control TV receiver, monitor display, audio equipment high current use application.) Product Discription: Product Name : 8 Channel Relay Module; Output Channel : 8 Power Supply : 5V; Load Voltage : AC 250V 10A, DC 30V 10A Total Size : 137mm x 56mm x 17mm / 5.4" x 2.2" x 0.7" (L*W*H); Mounted Hole Size : 3mm / 0.12" Mounted Hole Center Distance : 132 x 50mm / 5.2" x 2" (L*W); Material : Electrical Part Weight : 122g; Package Content : 1 x 8 Channel Relay Module
