Features:
1. Supports all OBD-II Protocols (ISO15765-4 (CAN),
ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850
PWM)
Benz 2001/02/03 W203 C200K (ISO).
BMW X5 2002 (ISO) -3, -5/X5/Z3/Z4/Z8/740I/740L/750IL, (ISO1941) Chevrolet Aveo (ISO).
Citroen C3 2004(ISO).
Daihatsu YRV 2005(ISO).
Daihatsu YRV Turbo 2006(ISO).
Fiat Tipo 2002(ISO).
Ford New ocus 2006(CAN).
Honda Accord 2006 JDM(ISO).
Honda Accord Euro R 2004 JDM(ISO).
Honda City GD8(ISO).
Honda Civic ES 1.6A(ISO).
Honda Integra Type R DC5 JDM(ISO).
Honda Jazz 1.4M(ISO).
Hyundai Accent 2004(ISO).
Hyundai Getz 1.3A 2004(ISO).
Hyundai Getz 1.6M 2004(ISO).
Hyundai Matrix 2004(ISO).
Hyundai Santa Fe 2.4A(ISO).
Hyundai Sonata GLS(ISO).
Hyundai Sonata 2005(ISO).
Hyundai Tuscani FX(ISO).
Kia Carens 2005(ISO).
Kia Magentis 2005(ISO).
Kia Rio LS (ISO).
Kia Sorento SUV 2005(ISO).
Lexus es300 Mazda 2(CAN).
Mazda 5 (CAN).
Mazda 6 (CAN).
Mazda Premacy 2001(ISO).
Mazda RX8 (CAN).
Mitsubishi Colt 2003 (ISO).
Mitsubishi Colt Plus 2005(ISO).
Mitsubishi Eclipse (GST--Turbo Car can be tested for the year 1995-2000; 8.2 * 4.6 * 2cm RS/GS 1994-1996 GS all can do; Turbo Car for the year 1996-2000, only have speed and TPS, can clear the DTCS) .
Mitsubishi Lancer Evolution IX 2006(ISO).
Mitsubishi Pajero 3.5 V6 2006(ISO).
Nissan Sunny B14(ISO).
Nissan Sunny VIP FB15(ISO) .
Nissan X-Trail 2.0L 2004(ISO).
Nissan X-Trail 2.5L 2004(ISO).
Peugeot 206 2001 Only can show RPM .
Peugeot 206 (ISO).
Peugeot 407 (ISO).
Renault Megane II 2005(ISO).
Renault Kangoo 2006(ISO).
Subaru Impreza 1.6TS 2002(ISO).
Subaru Impreza WRX 2005 (ISO).
Nissan Sunny (N16).
Nissan Cefiro (Teana)2005.
Nissan sentra 1.8 2000/2005.
Nissan Cefiro (Teana)2005.
Proton Perdana V6.
Subaru Legacy GT 2005.
Peugeot 206 2000.
Suzuki Jimny 1.3 2000 .
Toyota Camry 2.0A 2004 (ISO)
Toyota Camry 2.4A 2005 (ISO)
Toyota Corolla Altis 1.6A 2005 (ISO)
Toyota Corolla GLXi G8 1999 (ISO)
Toyota Corolla G9 2002 (ISO)
Toyota Vios 2004 (ISO)
3. Software for ELM327 USB OBD-II auto diagnostic system is
free. It allows you to use your PC and ELM327 to get various
data information of the engine on your car. The software is easy
to use and it supports DOS and Windows operating system.
4. Bluetooth connection, convenient for connecting to laptop.
5. Reading and analyzing the fault codes. Clearing fault codes.
Displaying data of sensor.
Functions:
1) Display current sensor data, including:
* Engine RPM,
* Calculated Load Value,
* Coolant Temperature,
* Fuel System Status,
* Vehicle Speed,
* Short Term Fuel Trim,
* Long Term Fuel Trim,
* Intake Manifold Pressure,
* Timing Advance,
* Intake Air Temperature,
* Air Flow Rate,
* Absolute Throttle Position,
* Oxygen sensor voltages/associated short term fuel trims,
* Fuel System status,
* Fuel Pressure.
2) Default settings(user adjustable);
3) Wireless (Bluetooth) 5~10 meter;
4) Software included for Palm, PDA, Mobile;
5) Software included for Windows PC;
6) Software included for Windows Smartphone;
7) Operating voltage: 12V, internal protection from short
circuits/overvoltages;
8) Nominal idle current: 45MA;
9) Item Weight: 40g;
10) Package Weight: 32g
LED indicator light: OBD transmit/receive, RS232
transmit/receive, power

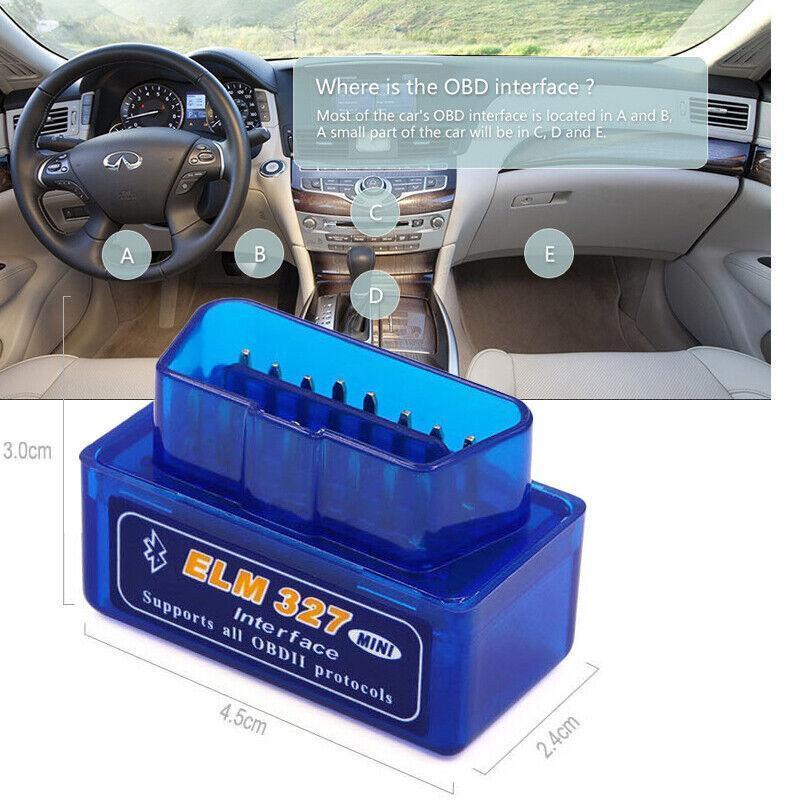

Important Notice: Please check your car to make sure it's OBD2
complianced type in order to work with the ELM327. The OBD2
complianced label can be found at your car's ECU label or user
manual.
How to operate:
For PC/Laptop users: Simply install the Scan tool Net.

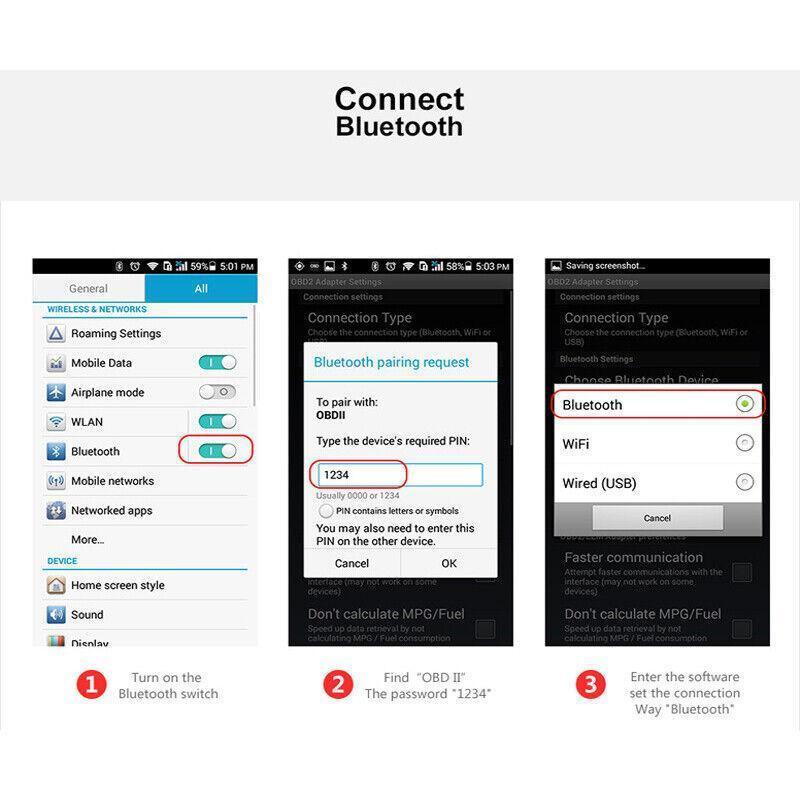

For Android users: Download the "Torque Lite/Pro" app from
Google Play store. Please install and pair the Bluetooth device
with your cellphone, and start your application. It can not work
with LEAF because LEAF comes with interface restriction
Package:

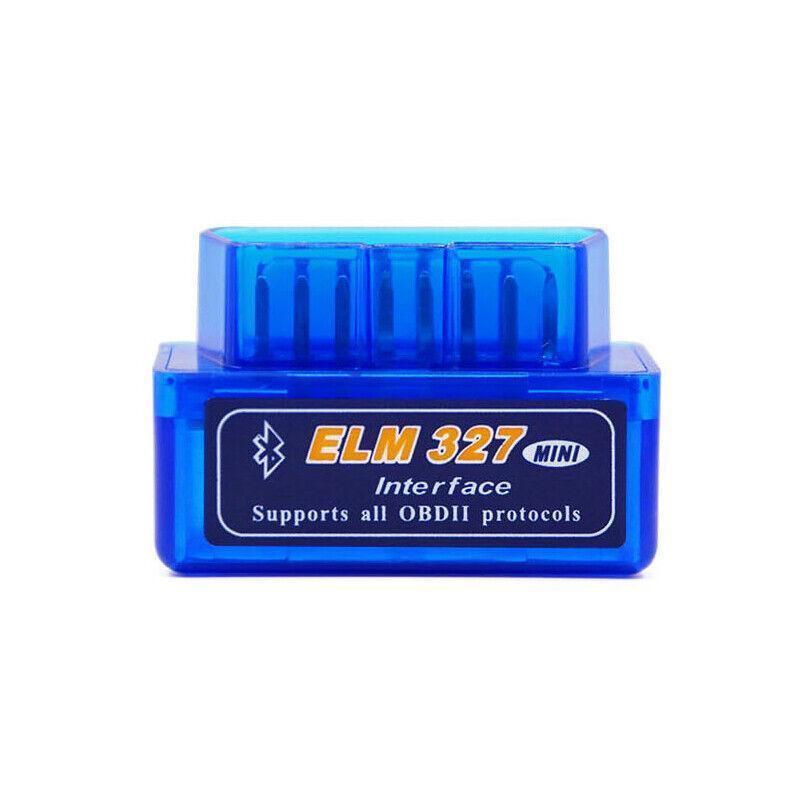

1 * Bluetooth ELM327 OBD2 Car Diagnostic Scanner
1 * User Guide
