Description

3:1 Heat Shrink Ratio with glue liner insert double Wall (available diameter size)

Diameter:25.4mm After Shrinking:8.5mm

Diameter:19.1mm After Shrinking:6.4mm

Diameter:12.7mm After Shrinking:4.2mm

Diameter:9.5mm After Shrinking:3.2mm

Diameter:6.4mm After Shrinking:2.2mm

Material:Polyolefin

Minimum Shrinkage Temp:+70°C

Full Shrinkage Temp:+110°C maximum

Operating Temperature:-55°C to +125°C

Tensile strength:10.4 Mpa

Dielectric strength:15 kV/mm

Manufacture specification:ISO9001

Flammability:Flame Retardant

Approvals:UL Approved

Supplied format (round or flat):Product is supplied flat

Cutting method:Scissors or sharp knife

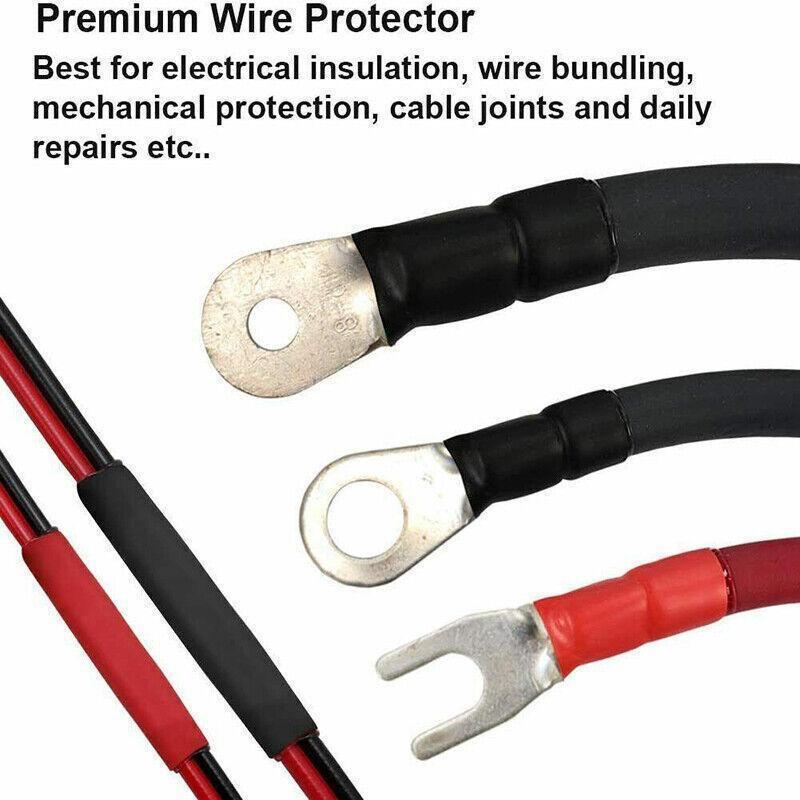

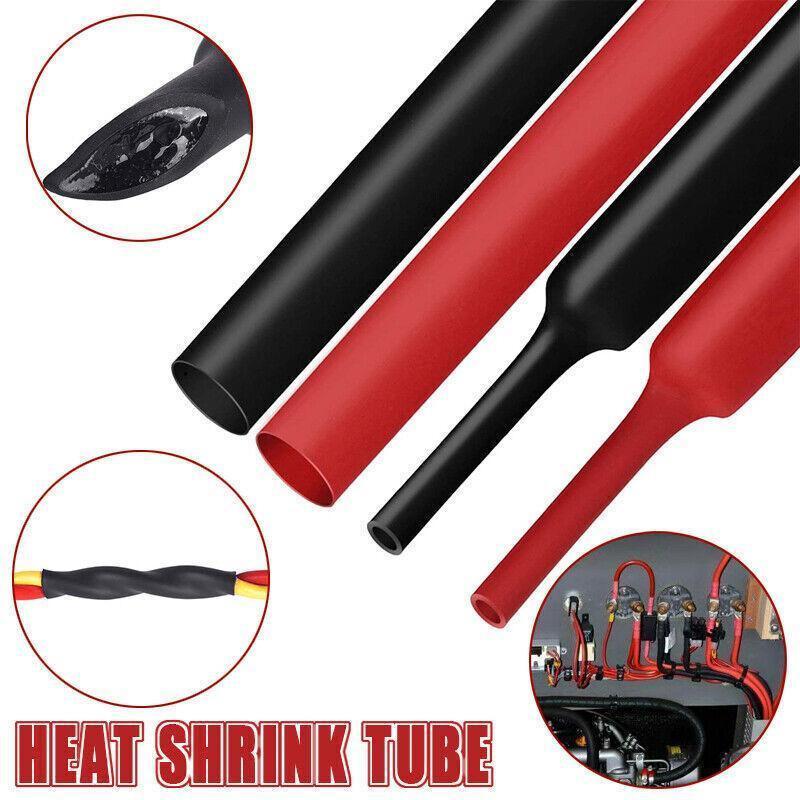

Heat shrinkable tube has excellent un-flammability, flexibility, and insulation. The shrinking temperature is very low and it can shrink very quickly. It is suitable for various electric insulation and bonding of cables and connectors and widely applied for connecting or end-handling, electric wire, insulating and harness of electric wire, corrosion-proof of metallic rods or tubes, and antenna.

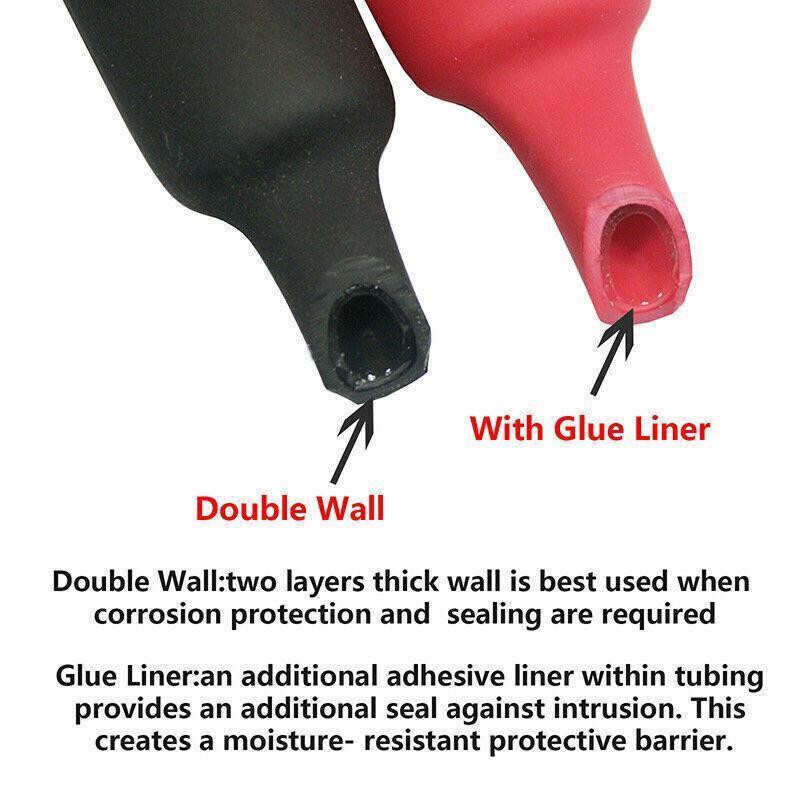

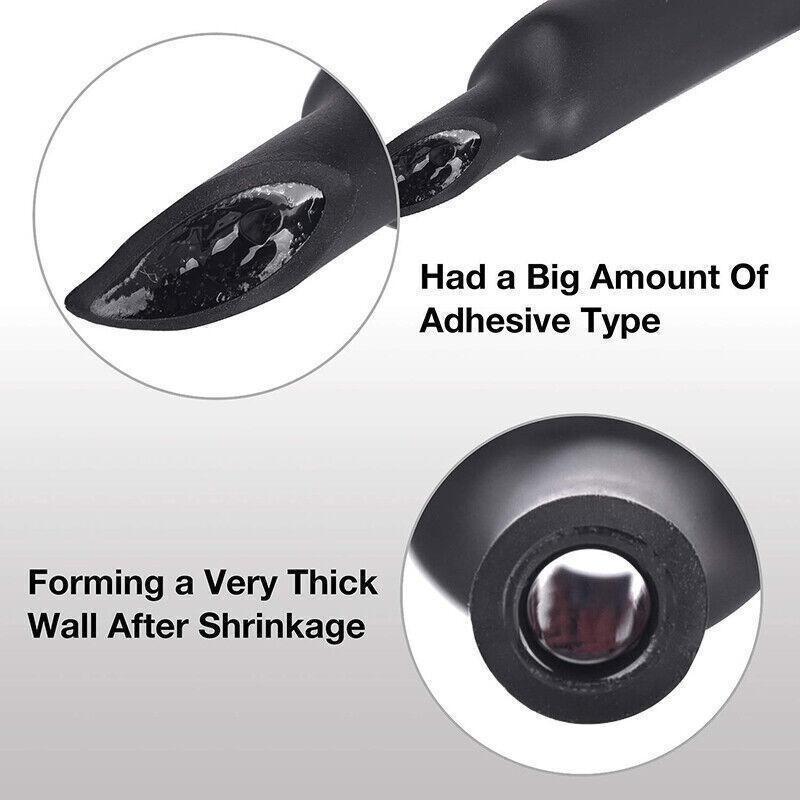

Double wall heat shrink tube is thick layer of quality insulation, it provides excellent property of both insulation and sealing, it is best used when corrosion protection,resist to destroy, abrasion resistant and long lasting sealing are required.

NOTE

1. As different computers display colors differently, the color of the actual item may vary slightly from the above images.

2. Please allow 1-3 CM differs due to manual measurement.

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
