Description

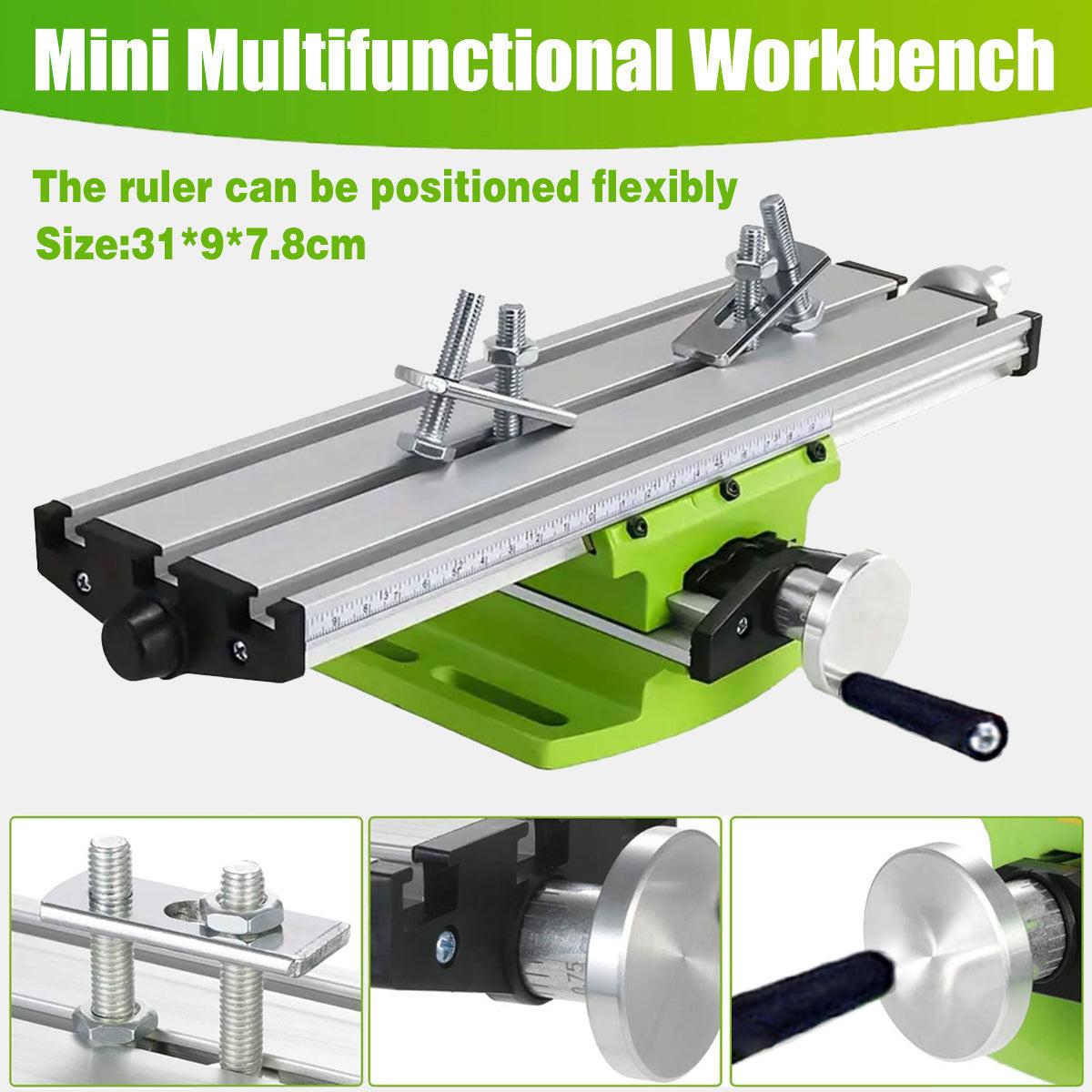

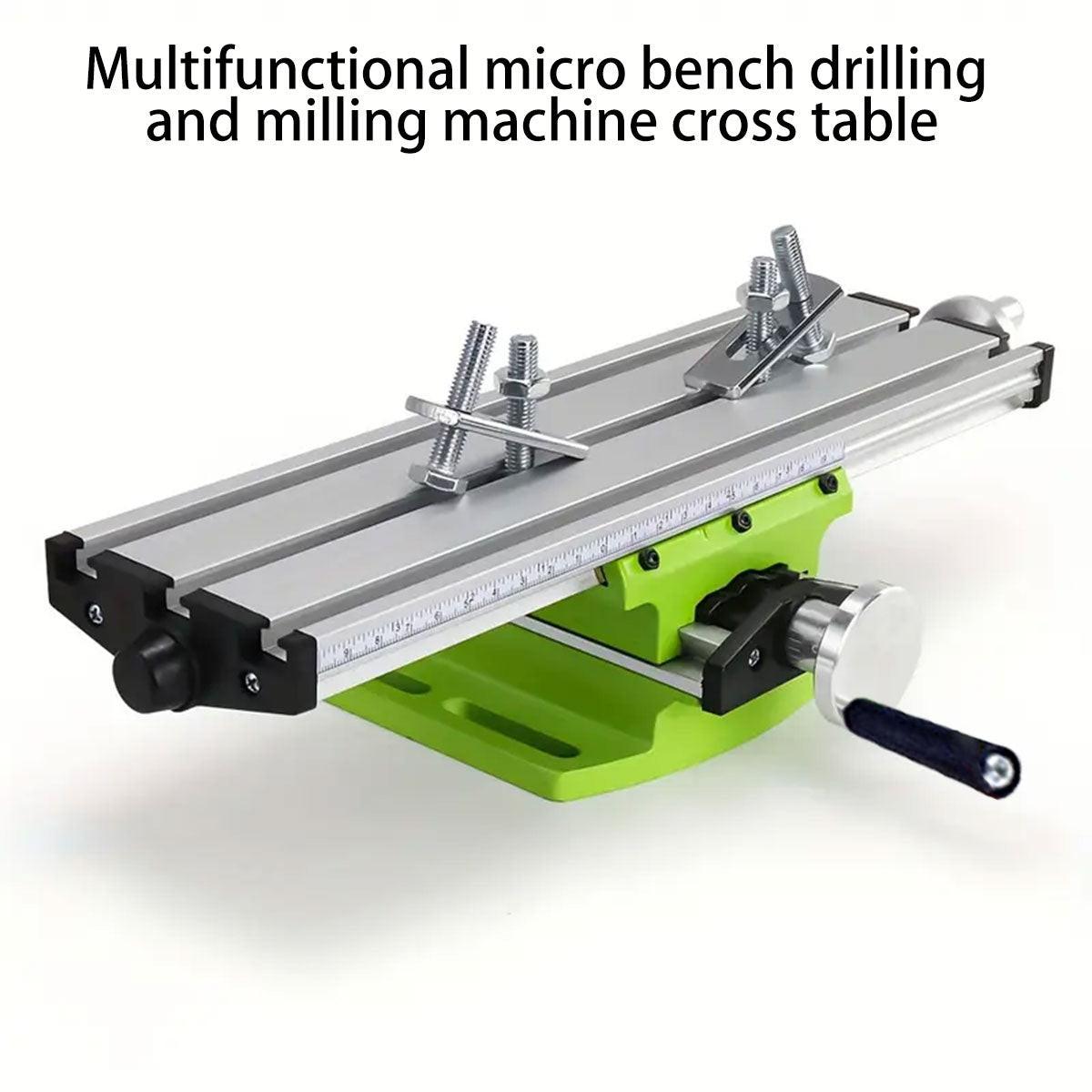

This multifunctional micro worktable machine tool table is essential for workshops, designed for drilling and milling machines. It allows precise X and Y axis adjustments, with durable aluminum alloy construction ensuring strength and stability. Adjustable scale handles enable accurate movement control, ideal for enhancing precision in DIY or professional machining tasks.

Features:

- Adjustable X and Y Axes: X-axis travel of 7.87 inches (200mm) and Y-axis of 1.97 inches (50mm) for precise, smooth adjustments.

- Scale Ring Handles: Scaled handles on both axes for precise control over moving distance, ensuring accurate cuts.

- Durable Construction: High-quality aluminum alloy for strength, stability, and long-term use.

- Compact Design: Working desk size 12.2x3.54 inches (310x90mm) offers ample space for small to medium projects.

- Easy to Use: Includes Allen key and adjustable screws to tighten/loosen slides, reducing shaking.

Specifications:

- Material: High-quality aluminum alloy

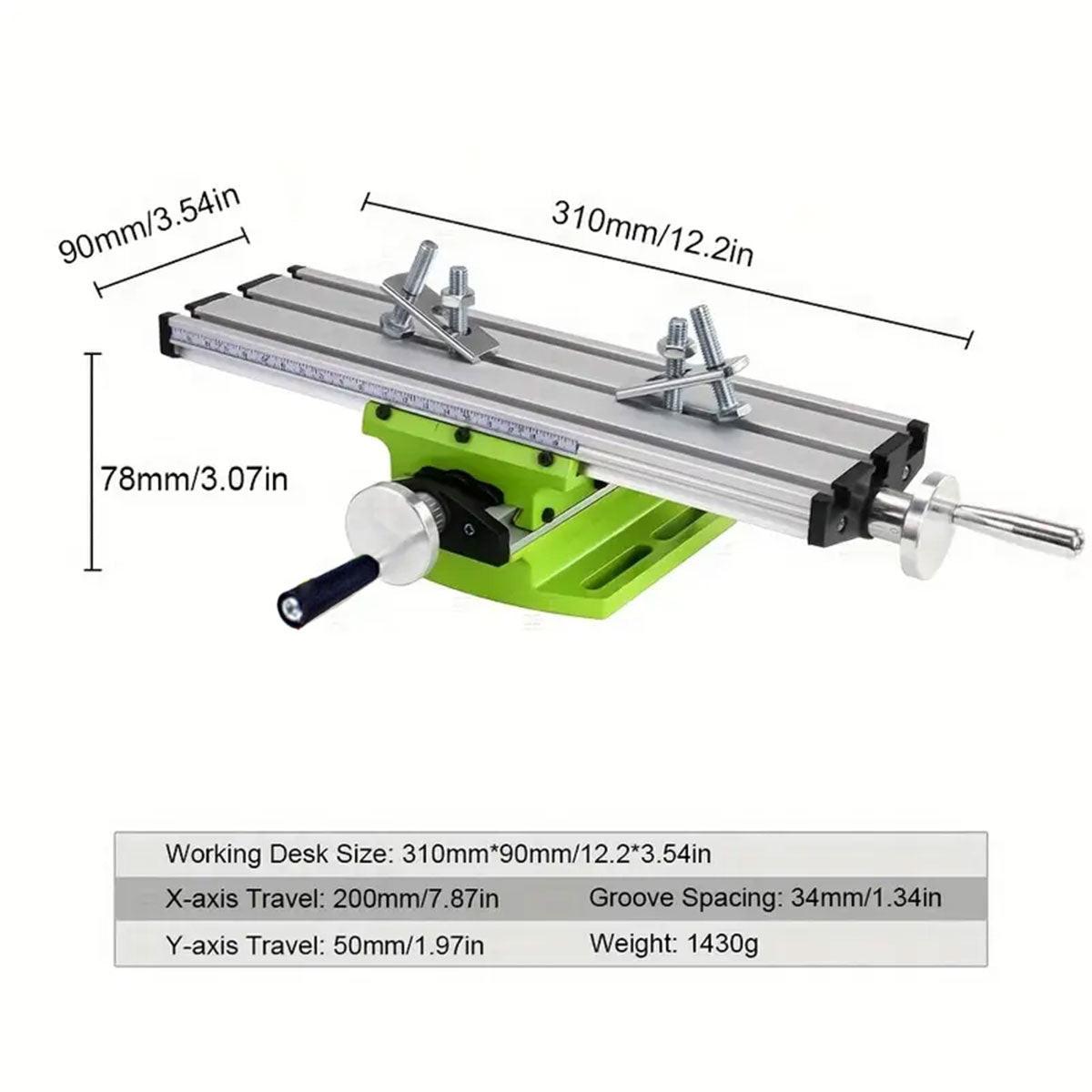

- Dimensions: Working desk 310mm x 90mm (12.2x3.54in) X-axis travel 200mm (7.87in), Y-axis 50mm (1.97in) Groove spacing 34mm (1.34in) (Note: 1-3cm size error allowed due to manual measurement)

- Weight: 1430g

- Colour: Green and Silver (Note: Slight colour difference may occur due to monitor settings)

Package Includes:

1 x Multifunctional Micro Worktable Machine Tool Table

1 x Allen Key (for adjustment)

Note:

Manual measurement may result in a size deviation of 1-3cm.

Actual product colour may slightly differ due to lighting and monitor settings.

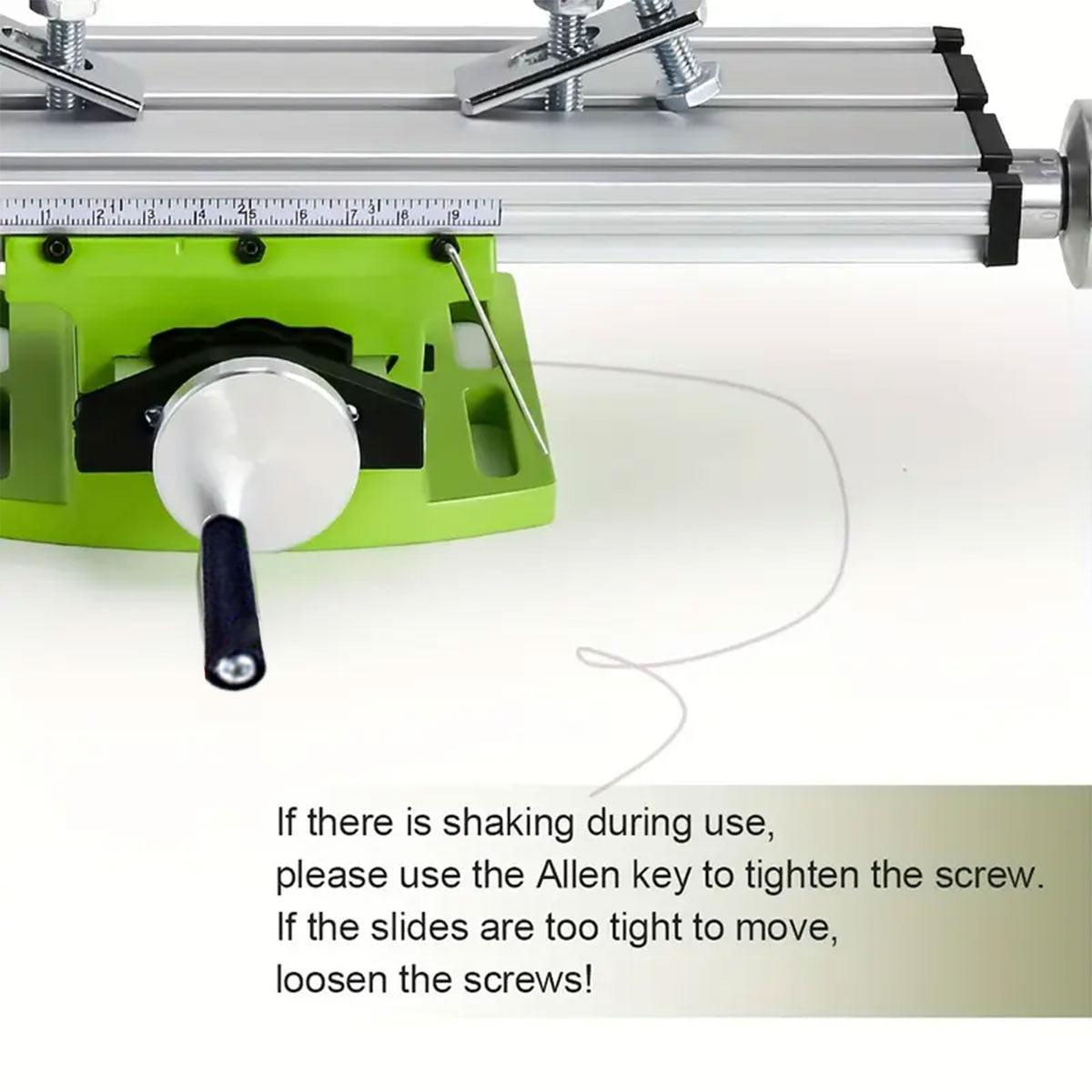

Adjust screws if there is shaking during use or if slides are too tight to move.

Specifications

• Weight: 200gr
• Usage: Indoor & outdoor
