Description
- 【Power Parameters】Voltage: 5-30V; Current: 5A; Power: 150W 【Protection Function】When the motor starts, the current increases slowly without inrush current, which effectively protects the motor and extends the life of the motor
【Switching Function】PWM DC motor speed controller with start and stop button, which can be controlled by an external switch.

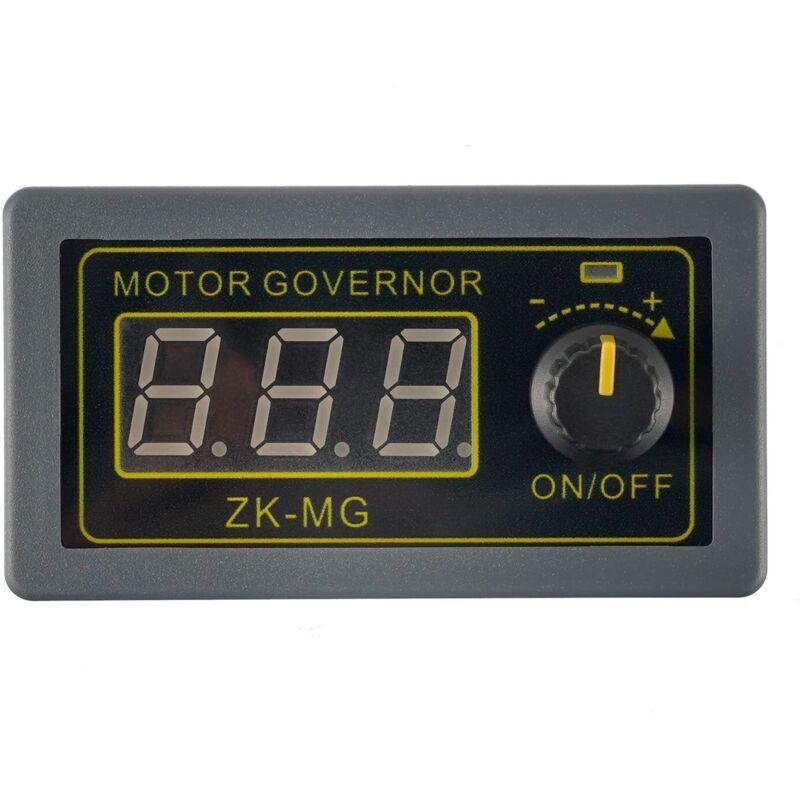

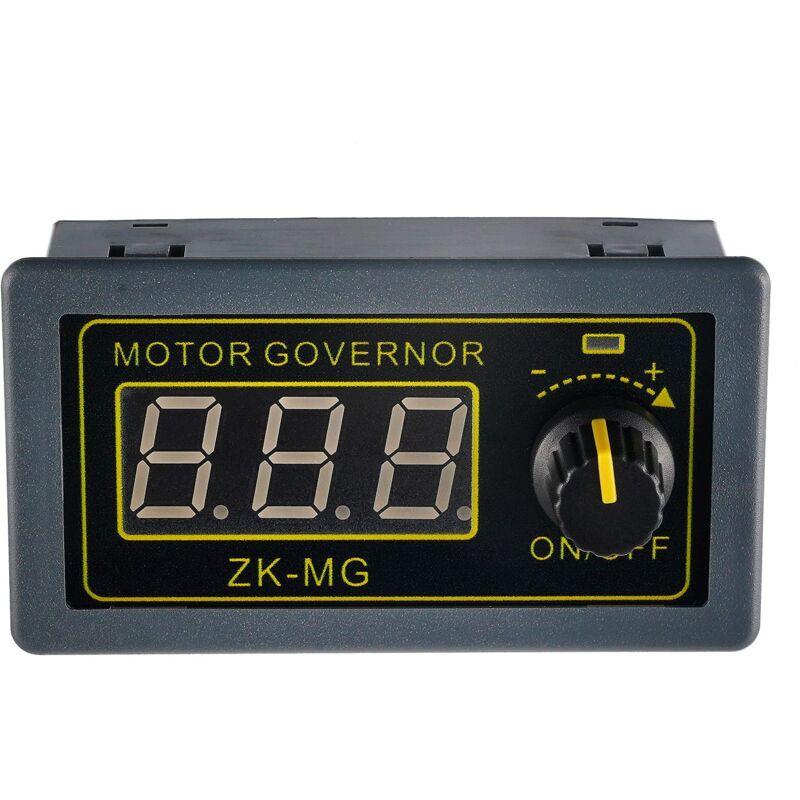

【LED Display】Digital display, more accurate than ordinary potentiometers.
【Intelligent Design】The adjustable electronic speed controller automatically saves the set parameters to prevent data loss after a power failure.
- BOJACK DC Brush Motor Regulator LED Digital Encoder PWM Adjustable Speed Controller with Rotary Switch Continuously Variable DC 5V 12V 24V 150W Signal Generator Driver Module Power Parameters: ◎ Power: 150W ◎ Voltage: DC 5-30V ◎ Rated Current: 5A ◎ Peak Current: 15A ◎ Duty Cycle: 0-, 1% step ◎ Input Reverse Polarity Protection: Yes ◎ Working Frequency: 1-99 KHz adjustable, 1KHz step, the default frequency is 20KHz, the accuracy is about 1% Controller Function: ◎ Adjust the motor speed by adjusting the duty cycle of the output signal
◎ Set the output frequency so that the output signal frequency matches the motor frequency.
◎ The LED display screen is convenient for reading and has higher accuracy.
◎ The 3-digit digital tube displays the duty cycle of the motor setting, the upper and lower limits of the duty cycle and the frequency.
- Setting Method: Normal display mode: ◎ Short press the potentiometer: Turn the output signal on/off
- ◎ Long press the potentiometer: Enter the parameter setting mode
- ◎ Turn the potentiometer clockwise: Increase the duty cycle value
- ◎ Turn the potentiometer counterclockwise: Decrease the duty cycle value
- Tips: ◎ The duty cycle is displayed by default
◎ Long press means you need to press for more than 3 seconds.
- Packing List: ◎ 1 X Motor Speed Controller
