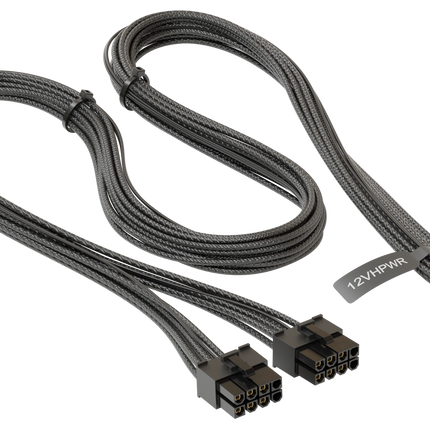

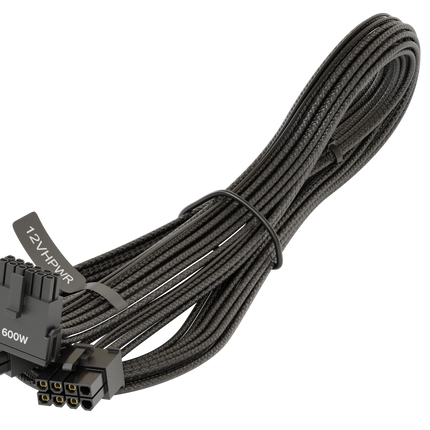

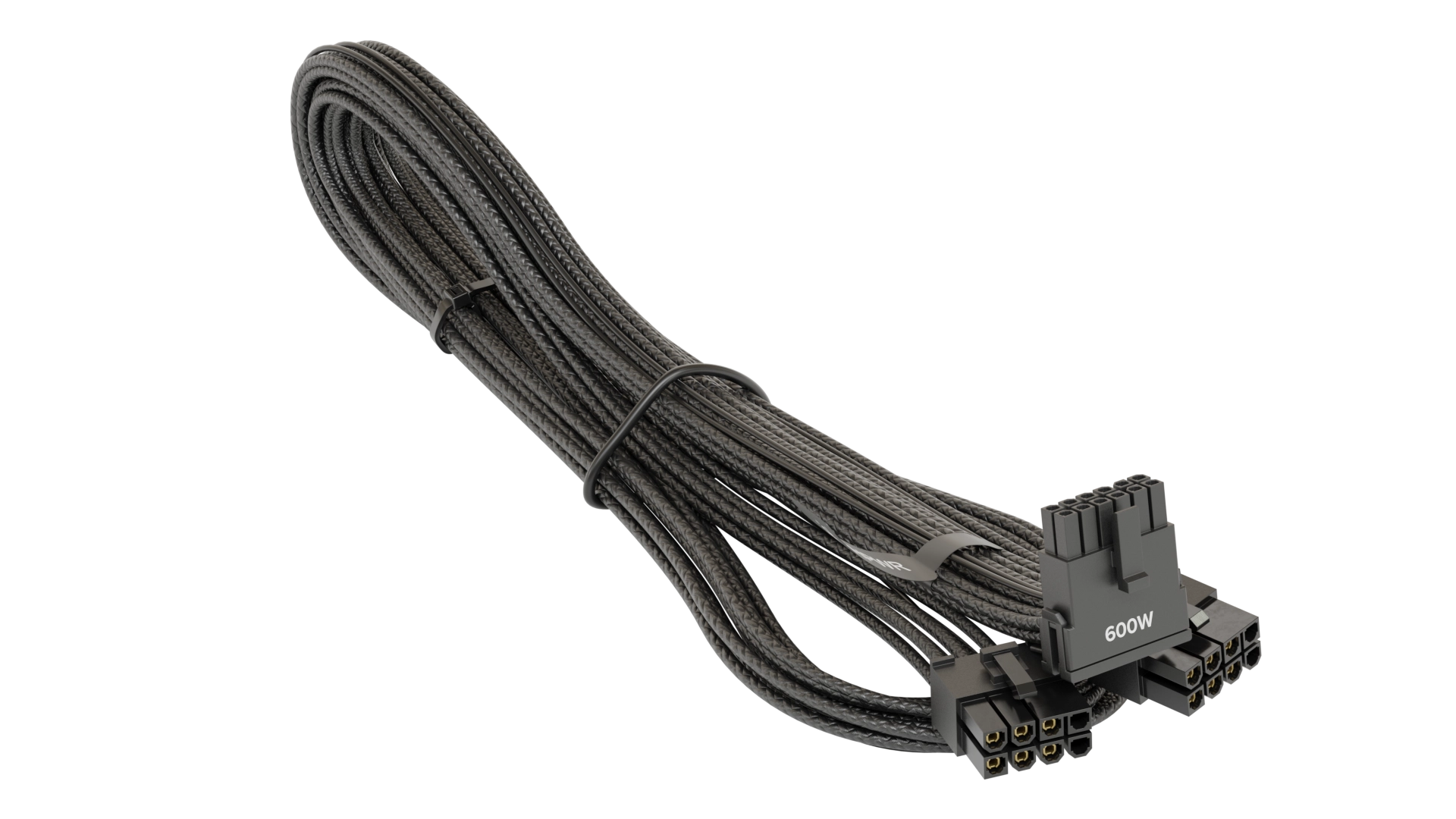

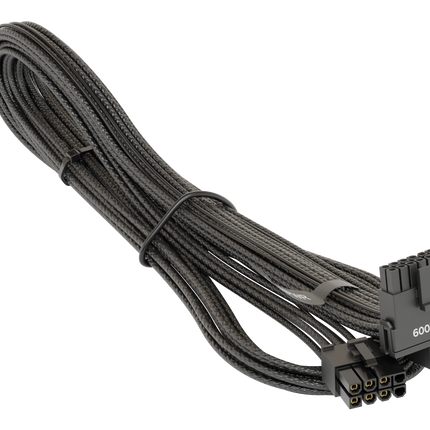

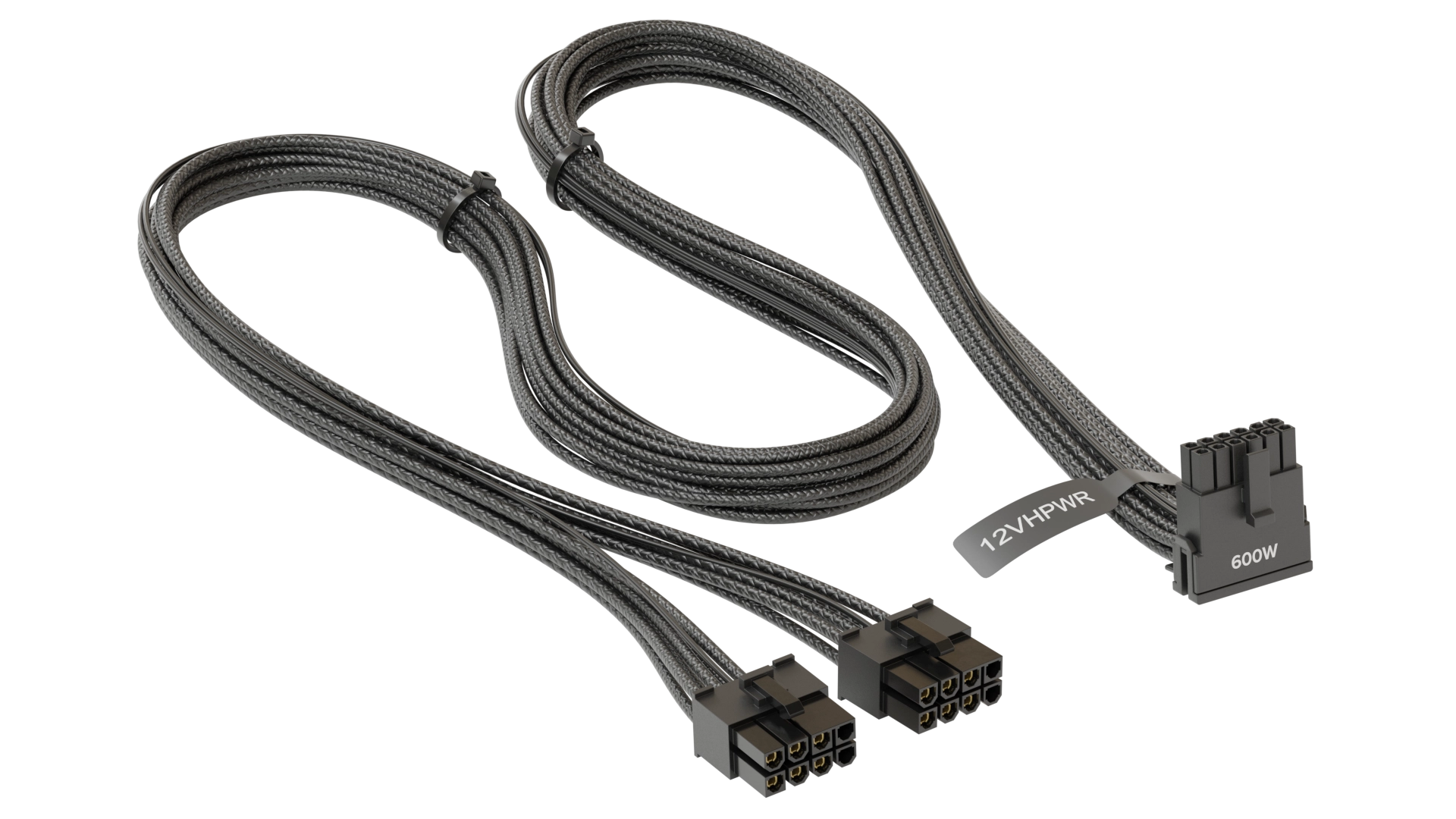

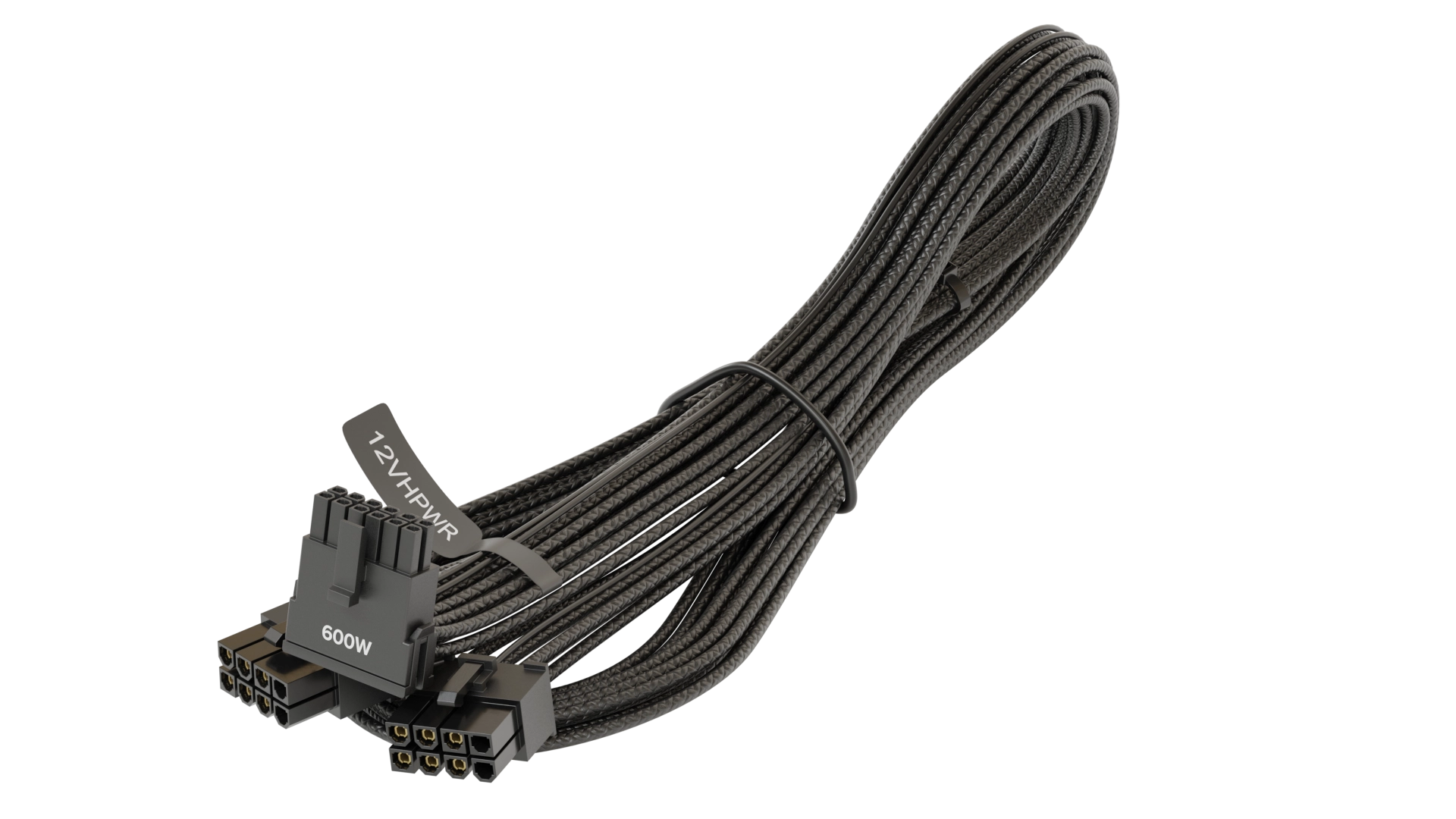

Seasonic 12VHPWR 90 Cable
Seasonic introduces the 12VHPWR 90-Degree 600 W graphics card cable to power high-performance GPU / graphic cards. This cable can be used with many of our current and past power supplies but with specific compatibility requirements. Please see below for important compatibility information.
The exact time to market depends on your location. Please contact support@seasonic.com for more information.
A Single Connector To Power Them All
With the arrival of the new ATX 3.0 / PCIe 5.0 specifications, some graphic cards will now be powered by the new 12VHPWR connector. Offering up to 600 W of power, the Seasonic 12VHPWR 90-Degree cable has been crafted with high quality materials, such as high current terminal connectors and 16 AWG wires to ensure highest performance and safety in usage. Please see Sea Sonic's compatibility recommendations below:
Power supply requirement: 650 W and above
The 12VHPWR 90-Degree cable that is provided with your Seasonic power supply is rated at 600 W. This means the maximum allowable power pull from the power supply by the VGA can be up to 600 W. If your VGA is very power usage intensive, then please consider power supplies that are rated at 750 W and higher.
* Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.
Power supply requirement: 2x PCIe Connectors

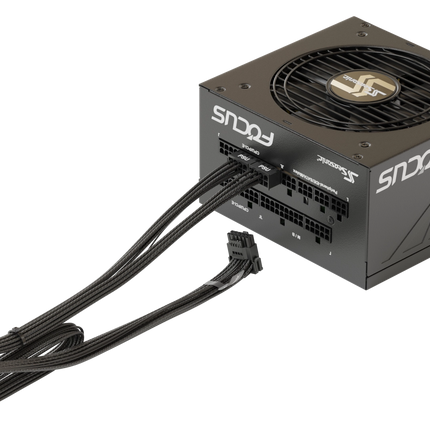

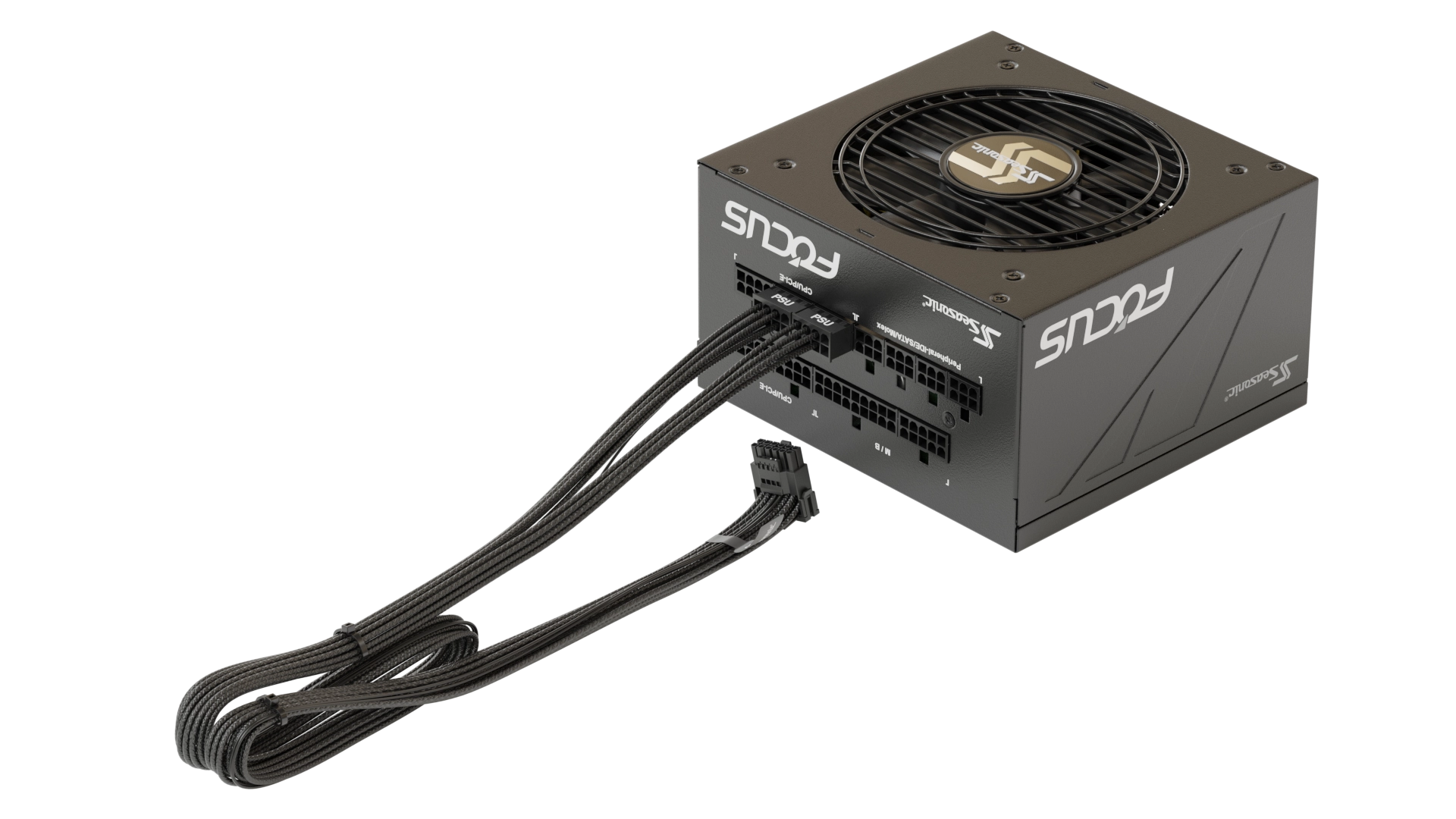

Your power supply must have 2x free PCIe connectors available where the Seasonic 12VHPWR's 2x PCIe connectors can plug into. BOTH 2x8 Pin PCIe connectors of the 12VHPWR must be connected into the power supply.
* Always follow the recommendations of your VGA card manufacturer for the minimum power requirement.
Compatible series (650 W and higher) - Seasonic PRIME
- Seasonic FOCUS GX & PX
- Seasonic FOCUS Plus Gold & Platinum
- Seasonic Platinum, XP2 & XP3
- Seasonic X-Series, KM3 & XM2
Not compatible series - Any power supplies rated under 650 W
- FOCUS Gold & FOCUS GM - These power supplies have only 1x PCIe connector available and therefore cannot work with the Seasonic 12VHPWR 90-Degree 600 W cable

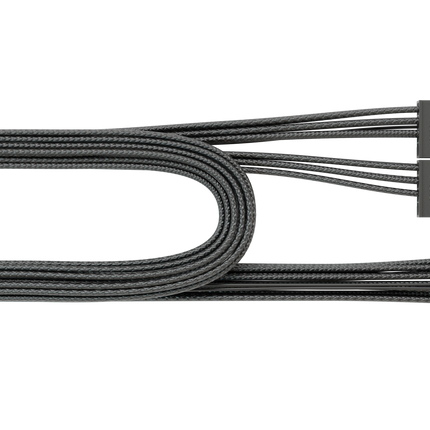

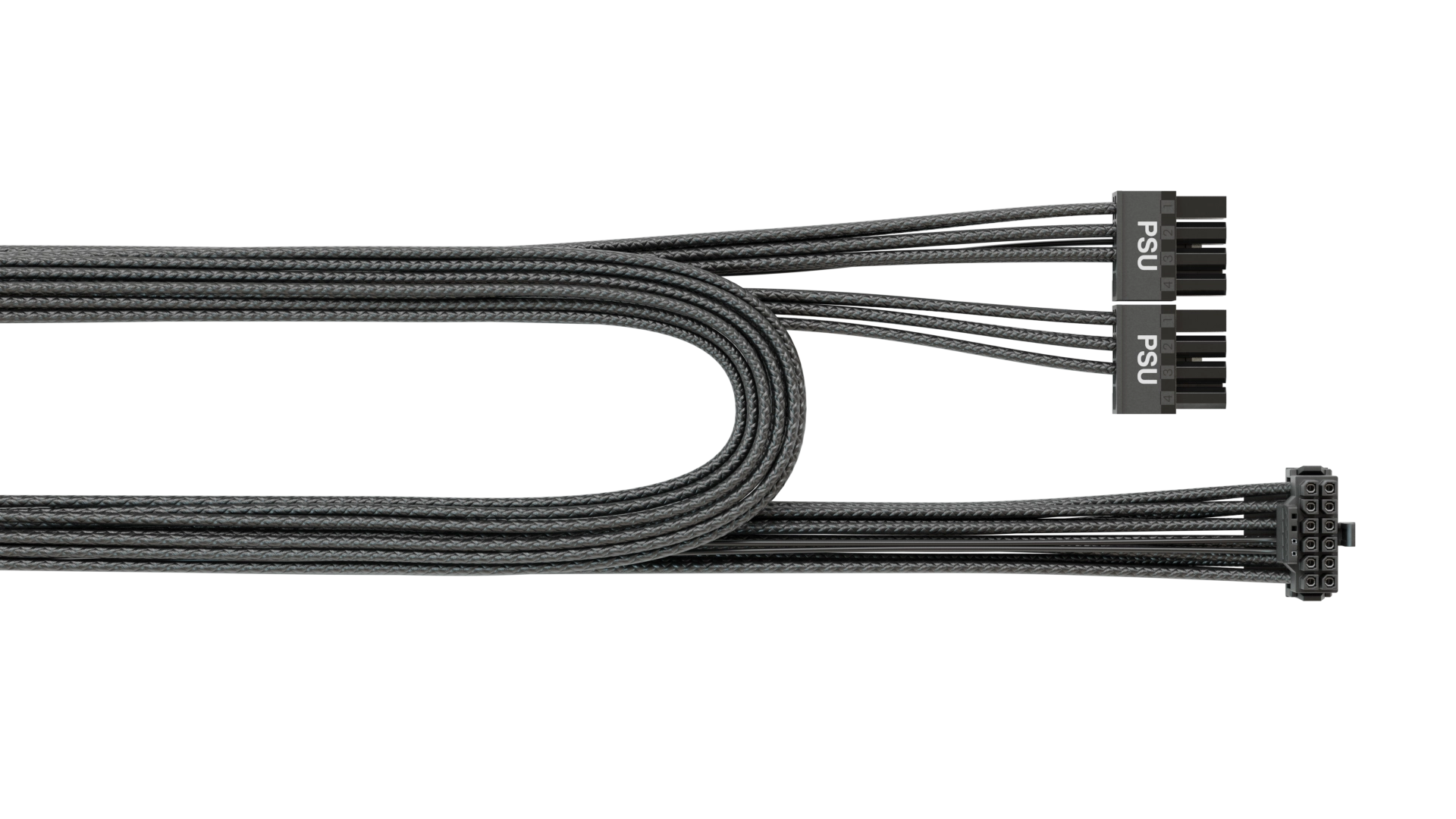

Specifications Connectors: 2x 8-pin to 1x 12VHPWR 90 Degree - High Current Terminal connectors Gauge: 16 AWG Length: 750 mm Warranty: 2 Years Color: Black Connector(s) per cable: 1 Total Length (mm): 750 Number(s) of cable(s) included: 1
