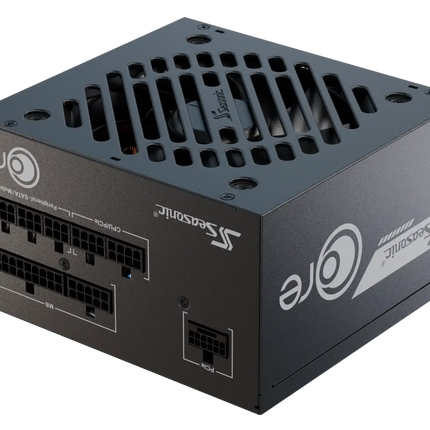

Seasonic Core GX-650 ATX3 80 Plus Gold Full Modular 650W PSU (SRP-CGX651-A5A32SF)

Share
- WhatsApp
- Share
- X
- Pin it
- Messenger
- Email

Product form

CORE GX ATX 3 (2024)The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four... Read more

SKU: V28-PSUSEACOREGX650V2

126 in stock

$287.95 $249.49 Excl. GST

Guaranteed secure & safe checkout.

Free shipping on selected products 🇦🇺

ABN: 24 621 799 273

↩️ 14-Day Hassle-Free Returns (in accordance with our Returns Policy and Australian Consumer Law)

Buy Now, Pay Later

Get your order today and pay later—no stress, no delays.
Simple, secure checkout with flexible payment options.
Read more

Description

CORE GX ATX 3 (2024)

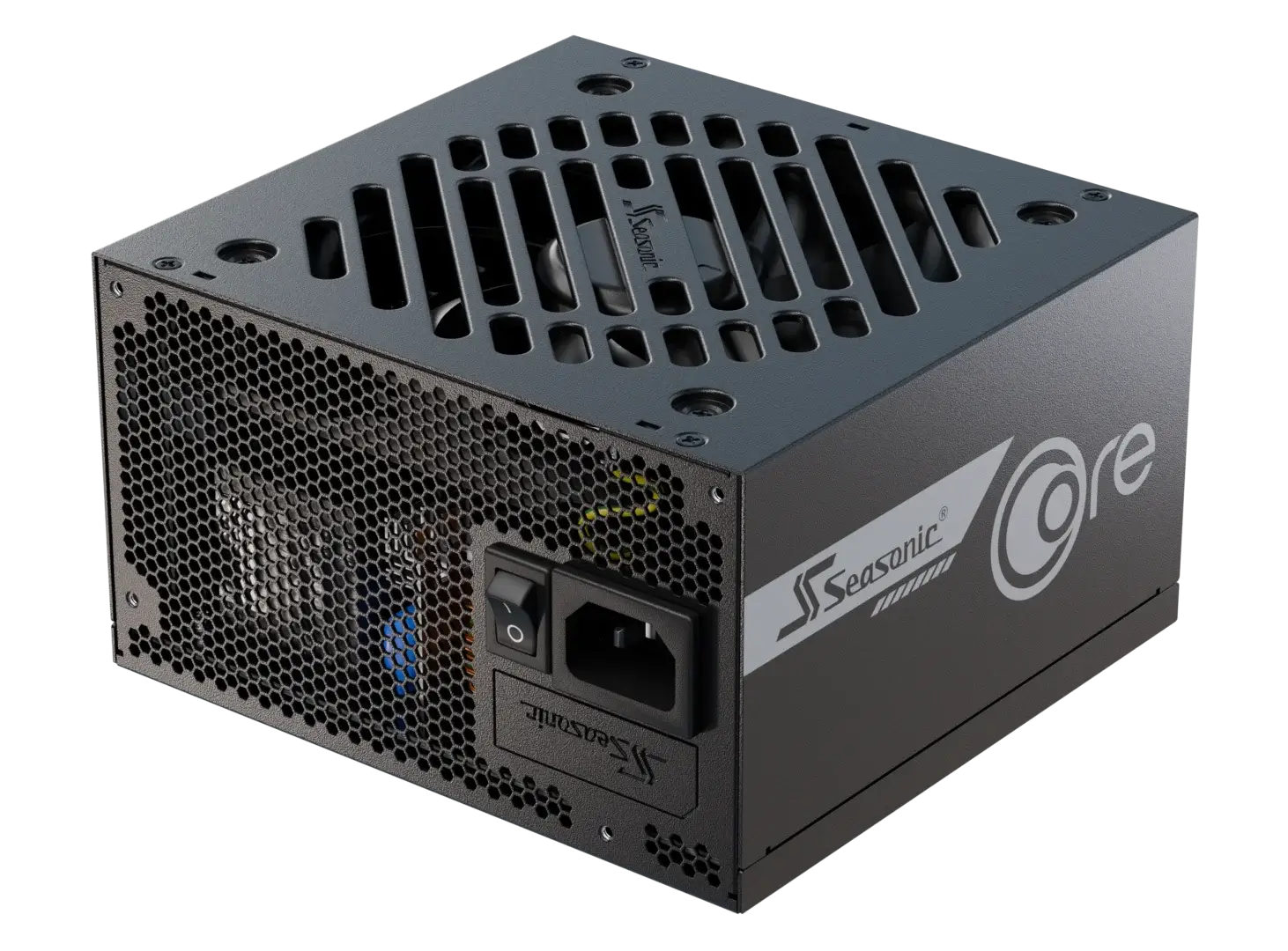

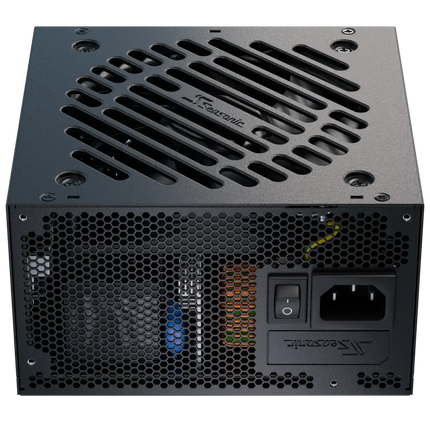

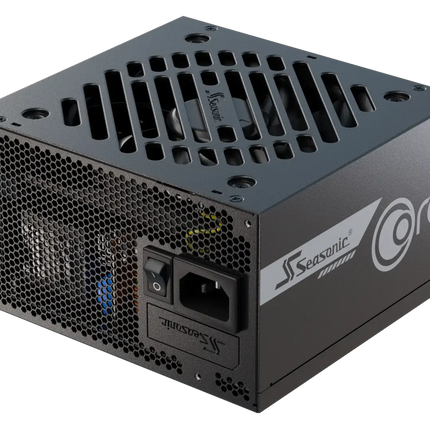

The updated Seasonic CORE GX ATX3 series complies with the latest ATX3 standards and includes four output ranges from 1000W to 650W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic's Core GX line is a fully modular design equipped with black cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm fluid dynamic bearing fan is combined with Seasonic's Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.

SPECIFICATIONS

Technical Specifications
80PLUS ®	Gold
Cybenetics Efficiency Level	TBA
Cybenetics Noise Level	TBA
Form Factor	ATX/EPS
Fan Information	Fan Size	120 mm
Fan Control	Smart and Silent Fan Control
Fan Bearing	Fluid Dynamic Bearing
Life Expectancy	25,000 hours at 40 °C, 15 % – 65 % RH

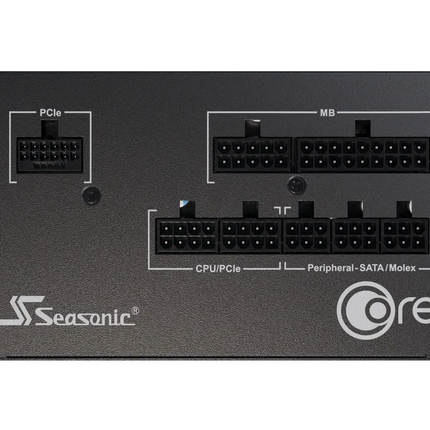

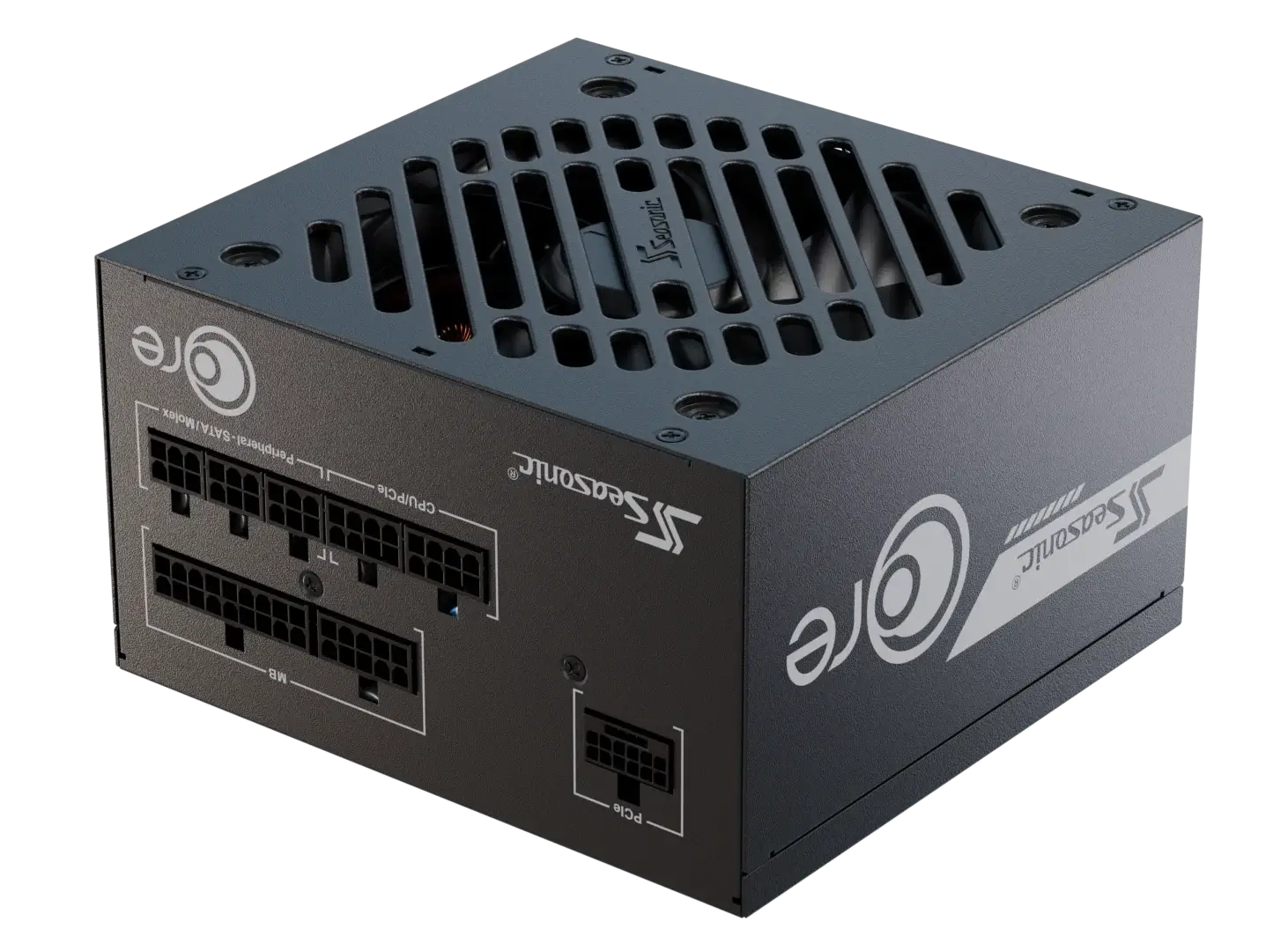

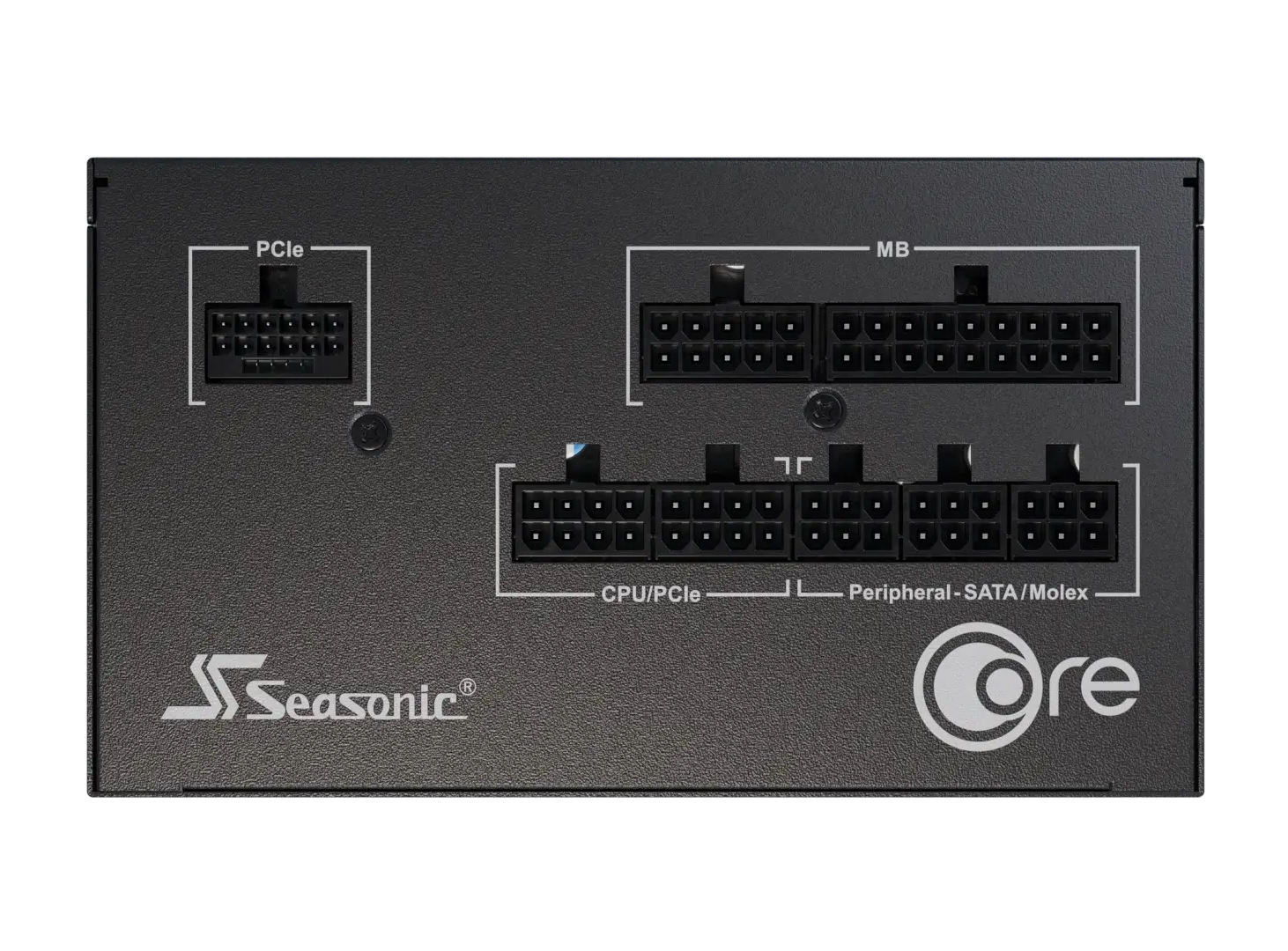

Cable Information	Modularity	Fully Modular
Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan	100,000 hours
AC Input	Full Range
Protection	OPP, OCP, OTP, OVP, SCP, UVP
Safety and Environmental	Safety and EMC	BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA
Environmental Compliance	Energy Star, ErP Lot 6, REACH, RoHS, WEEE
Warranty	7 Years

Power Output
AC Input	Voltage: 100 V - 240 V
Current: 9 - 4.5 A
Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
Maximum Power	20 A	20 A	54 A	0.3 A	3 A
100 W	648 W	3.6 W	15 W
Total continuous power	650 W

Specifications

Weight: 200gr
Usage: Indoor & outdoor
