Description

Technical Specifications

80PLUS ®

Gold

Cybenetics Efficiency Level

TBA

Cybenetics Noise Level

TBA

Form Factor

Intel ATX 12 V

Dimensions

140 mm (L) x 150 mm (W) x 86 mm (H)

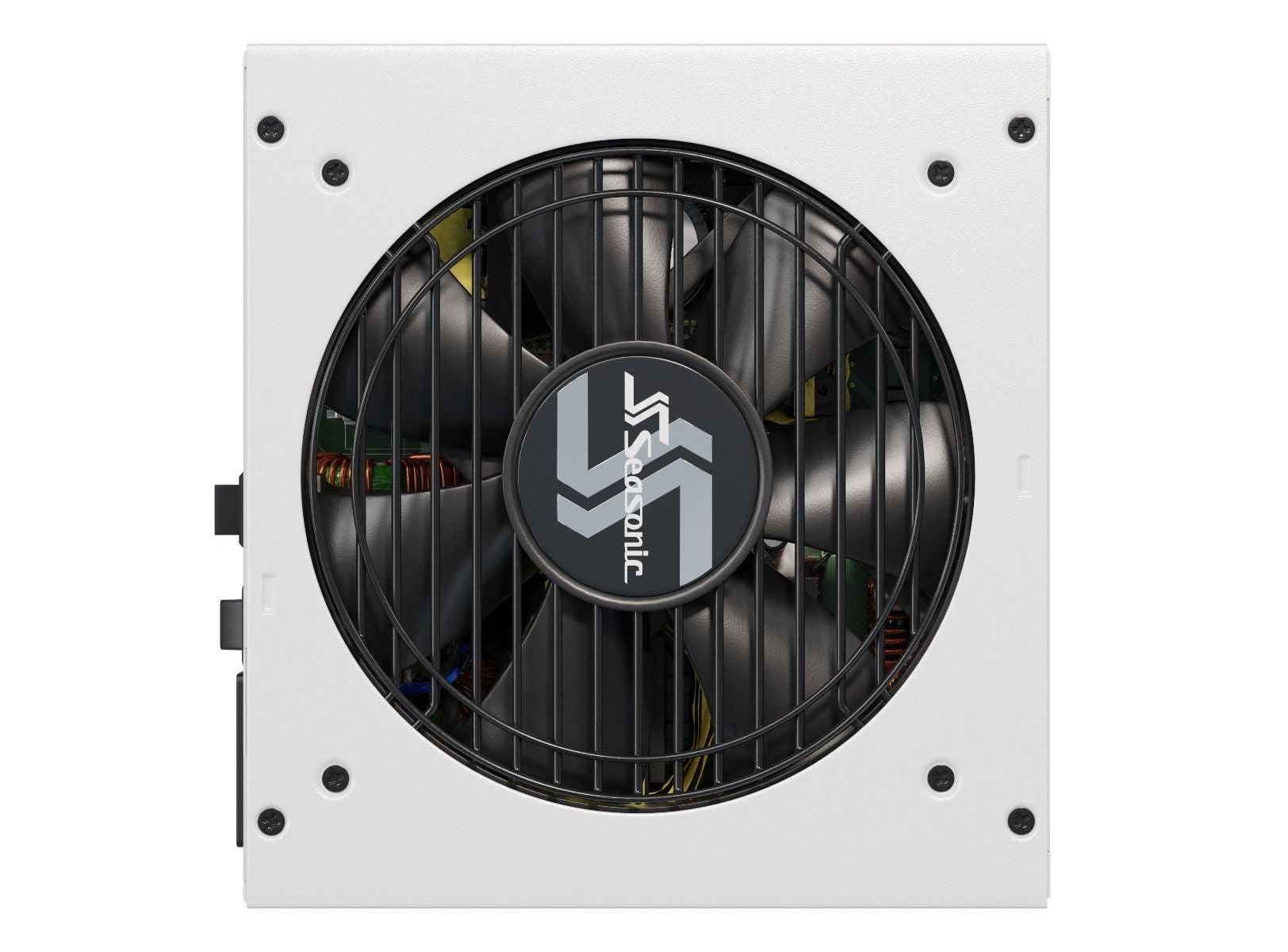

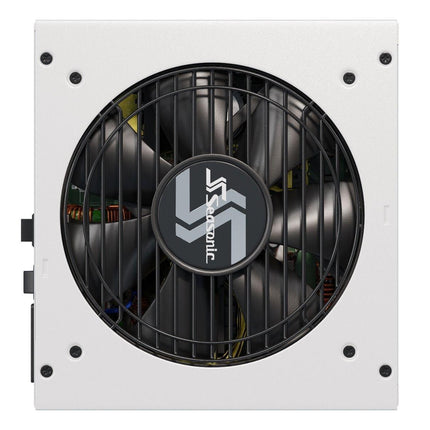

Fan Information

Fan Size

120 mm

Fan Control

S3FC - Fanless until 30 % load

Fan Bearing

Fluid Dynamic Bearing

Life Expectancy

50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information

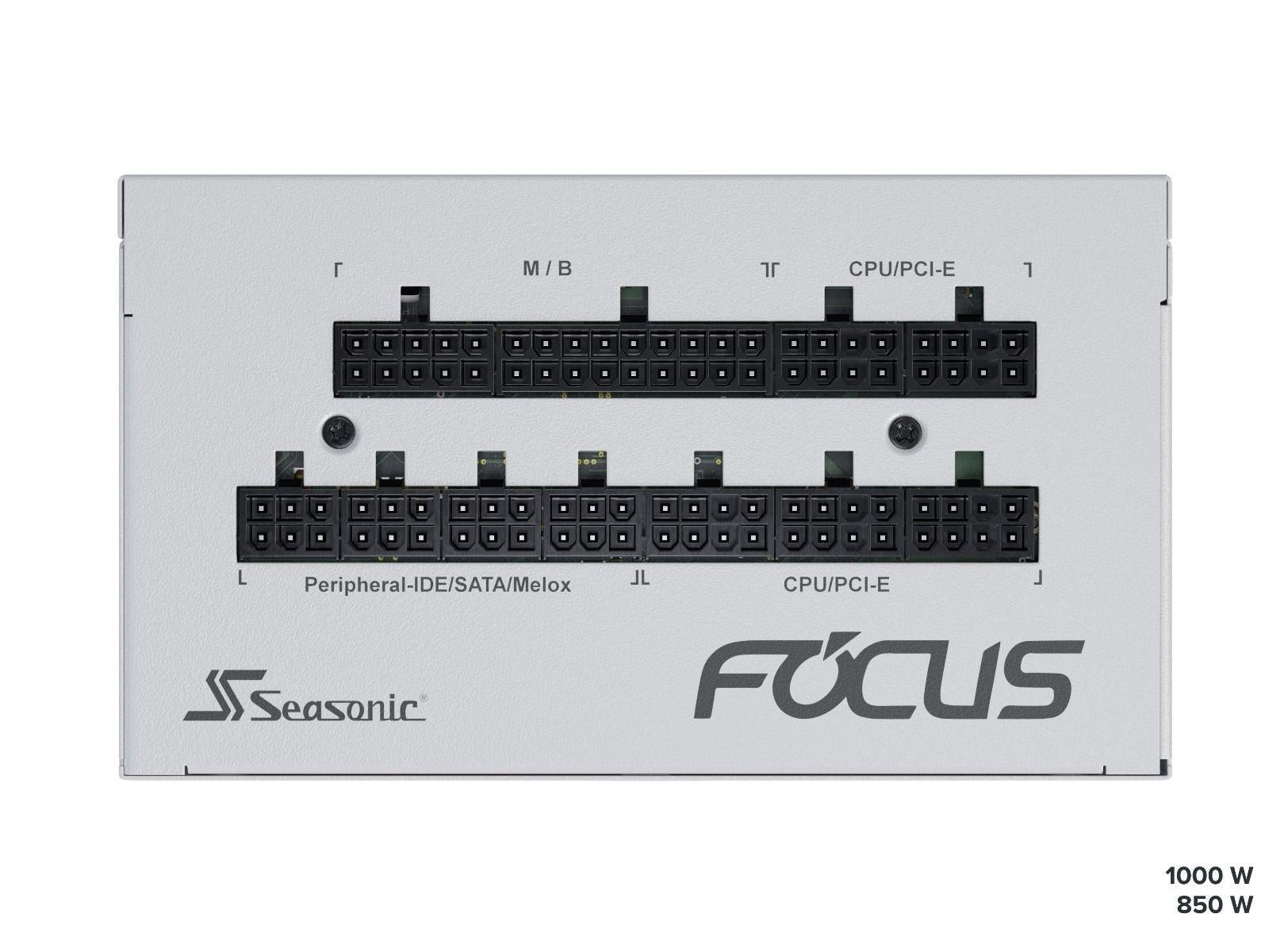

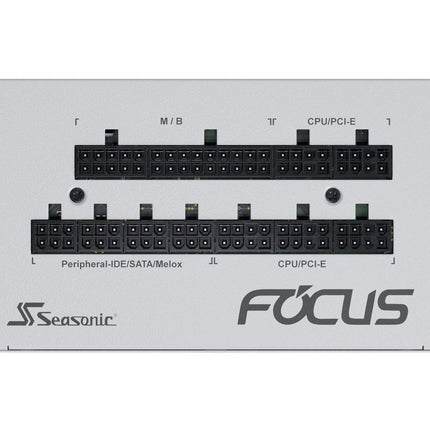

Modularity

Fully Modular

Cable type

Flat cables

Electrical Features

Operating Temperature

0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan

100,000 hours

AC Input

Full Range

Protection

OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental

Safety and EMC

cTUVus, TUV, CB, CCC, BSMI, EAC, CE

Environmental Compliance

Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty

10 Years

Power Output

AC Input

Voltage: 100 V - 240 V

Current: 12 - 6 A

Frequency: 50 Hz - 60 Hz

DC Output

Rail

+3.3 V

+5 V

+12 V

-12 V

+5 VSB

Maximum Power

20 A

20 A

70 A

0.3 A

3 A

100 W

840 W

3.6 W

15 W

Total continuous power

850 W
