Product form

FEATURE SUMMARY80 PLUS® Platinum certifiedCompact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm Tight Voltage Regulation... Read more

SKU: V28-PSUSEAFOCUS750SPX

6 in stock

$514.95 $445.49 Excl. GST

Guaranteed secure & safe checkout.

Free shipping on selected products 🇦🇺

ABN: 24 621 799 273

↩️ 14-Day Hassle-Free Returns (in accordance with our Returns Policy and Australian Consumer Law)

Buy Now, Pay Later

Get your order today and pay later—no stress, no delays.
Simple, secure checkout with flexible payment options.
Read more

Description

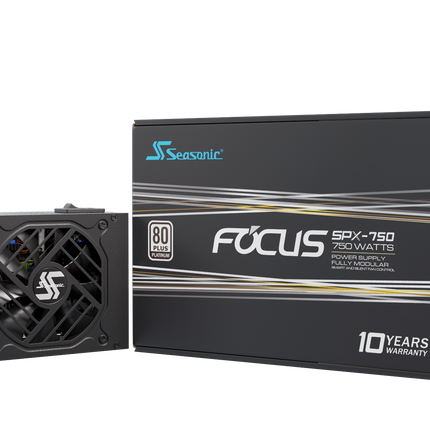

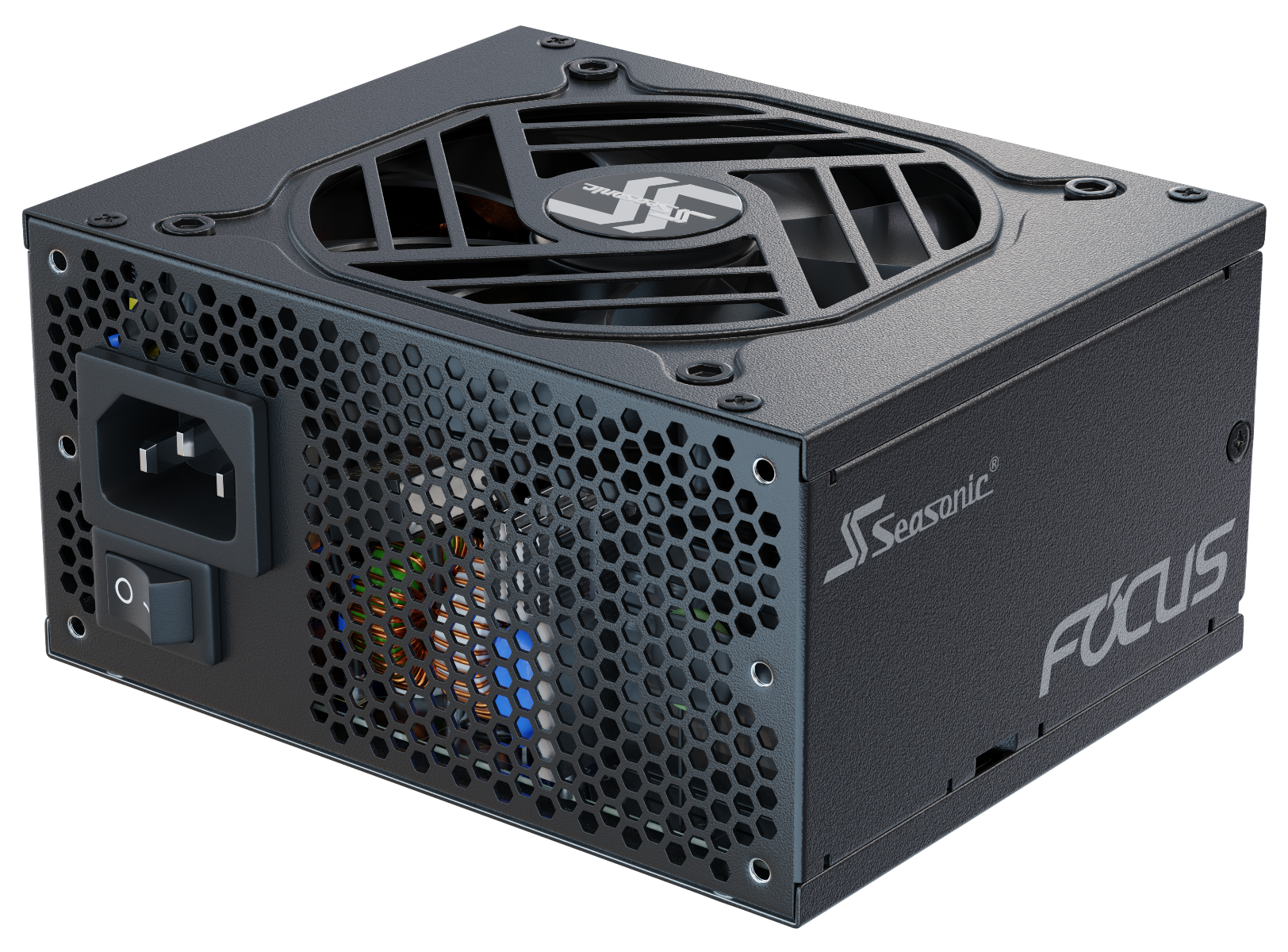

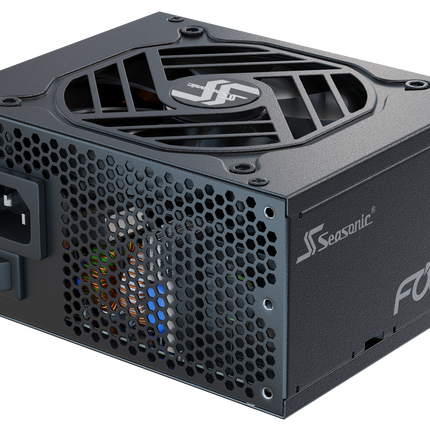

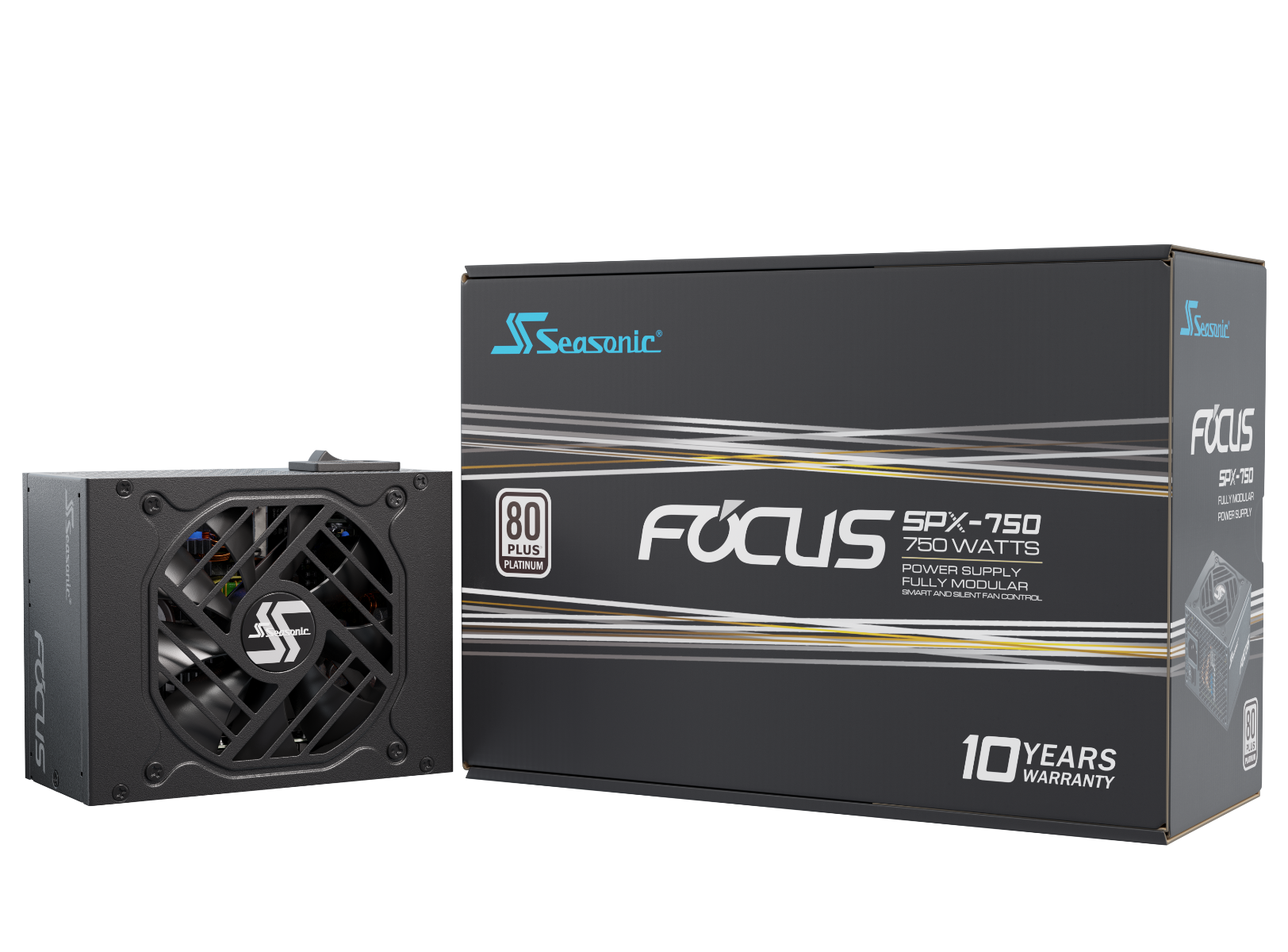

Name: Seasonic FOCUS SPX-750 750W Fully Modular PSU
Brand: Cartoz
SKU: V28-PSUSEAFOCUS750SPX
Price: 445.49 AUD
Availability: InStock

FEATURE SUMMARY

80 PLUS® Platinum certified

Compact SFX Size - 125 (L) x 100 (W) x 63.5 (H) mm

Tight Voltage Regulation

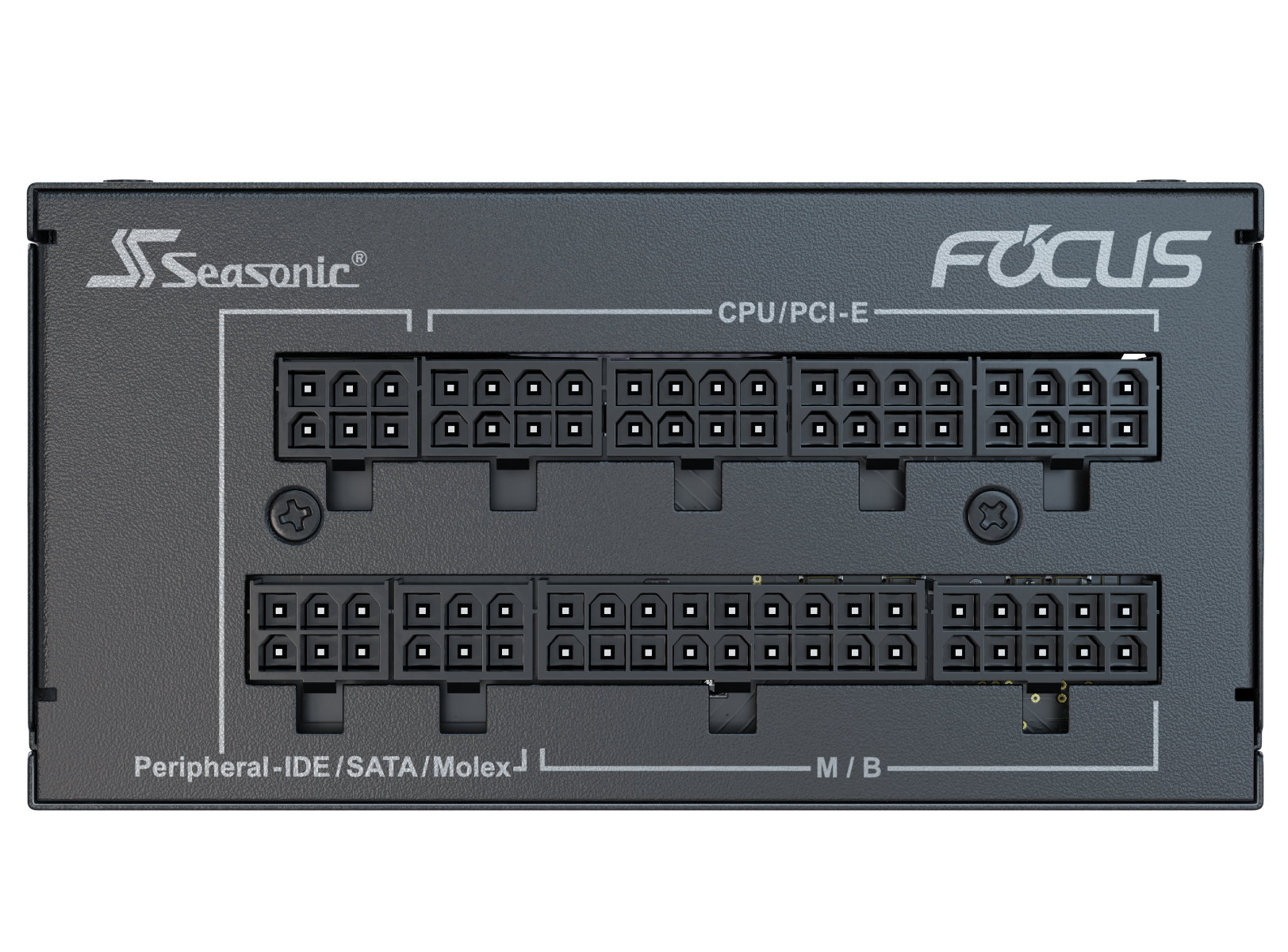

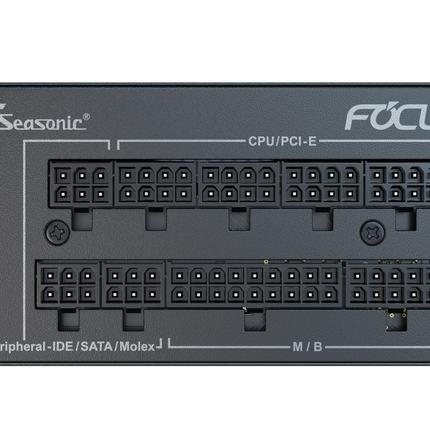

Cable-free Connection Design

S3FC - Fanless until 30 % load

SFX to ATX Expandability

Gold plated connectors

Technical Specifications
80PLUS®		Platinum
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		Intel SFX 12 V / ATX 12 V
Dimensions		100 mm (L) x 125 mm (W) x 63.5 mm (H)
Fan Information	Fan Size	92 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		10 Years

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 10 - 5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	20 A	20 A	62 A	0.3 A	3 A
	Maximum Power	100 W		744 W	3.6 W	15 W
	Total Continuous Power	750 W

Specifications

Weight: 200gr
Usage: Indoor & outdoor
