Simplecom CM302v2 Bi-Directional 2 Way HDMI 2.1 Switch Selector 8K@60Hz

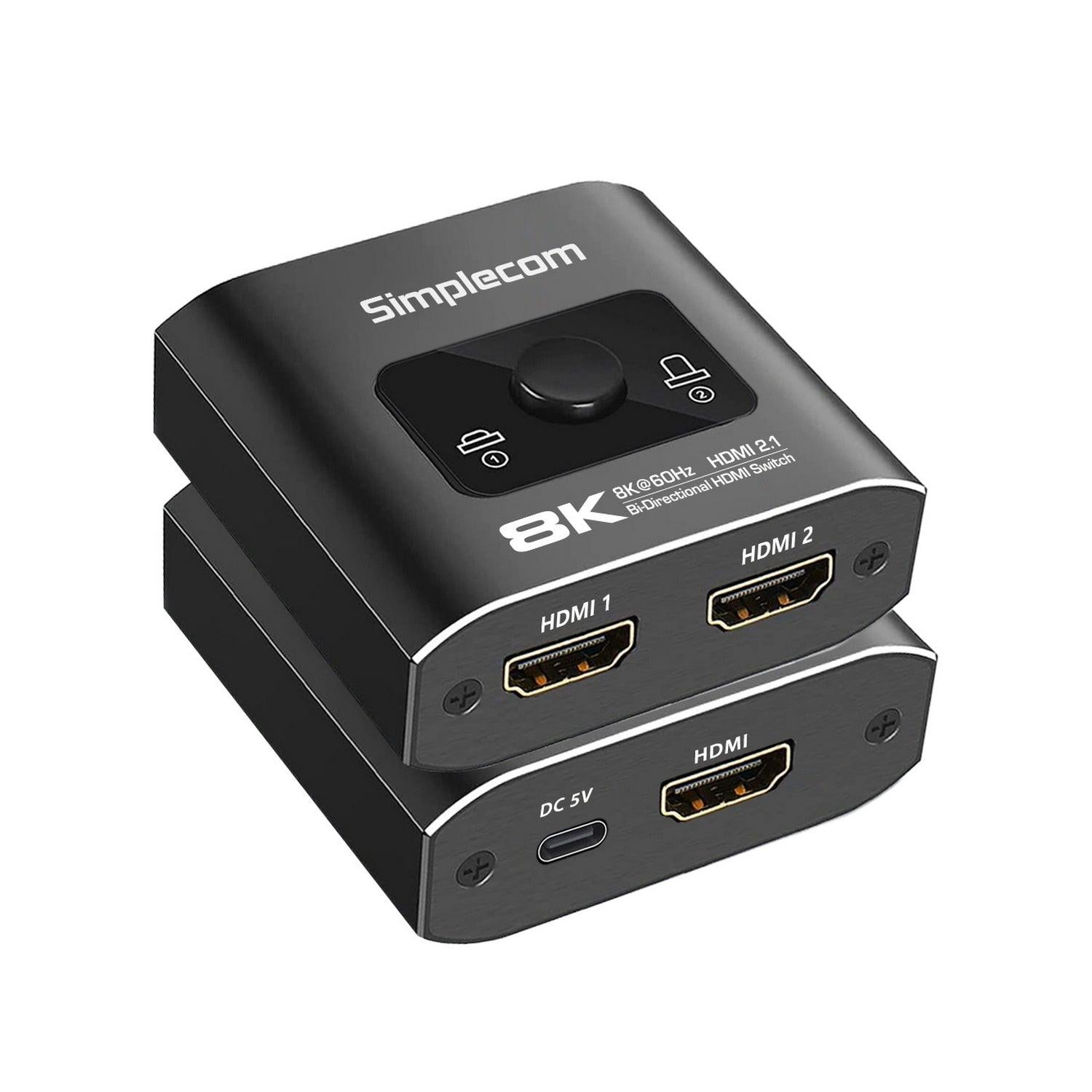

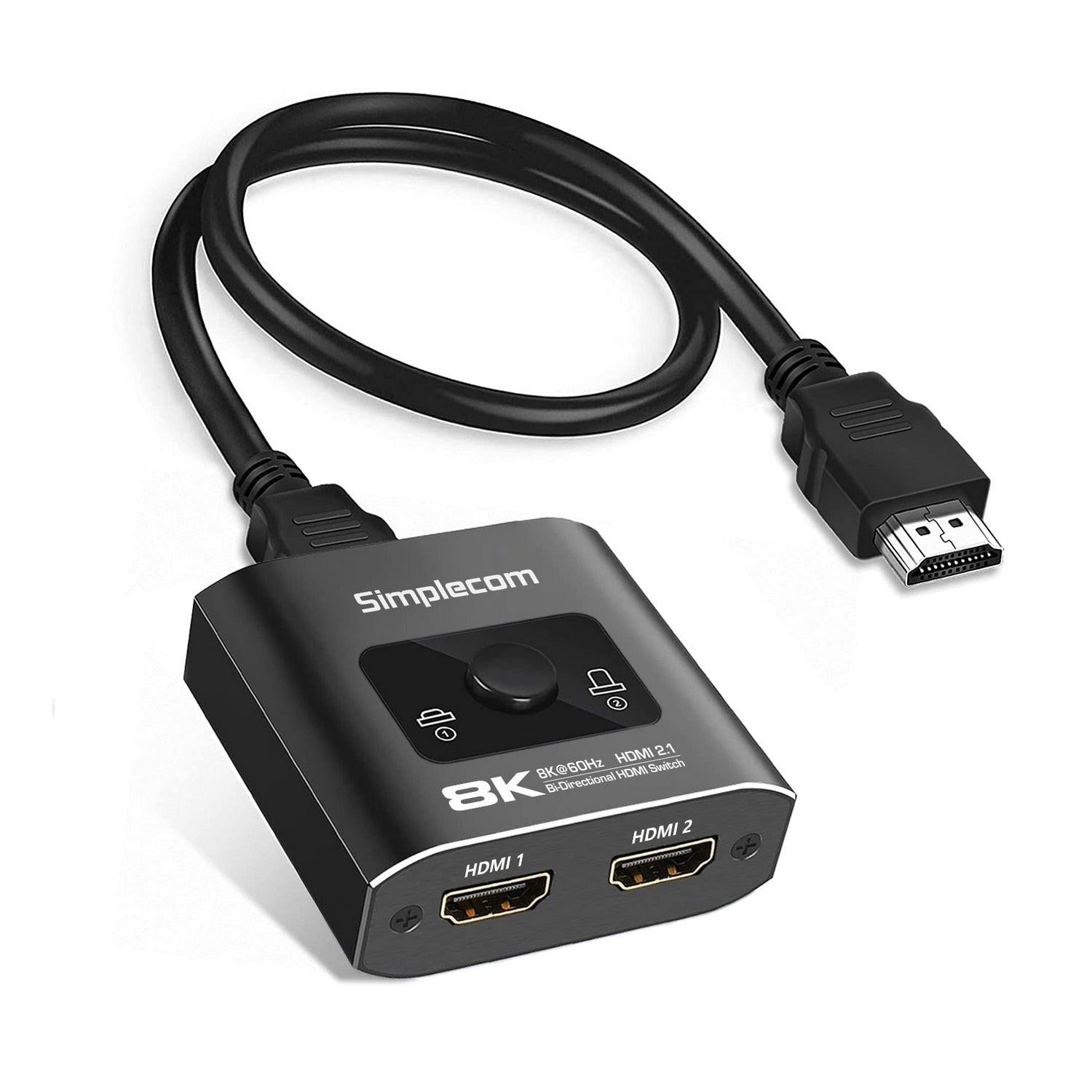

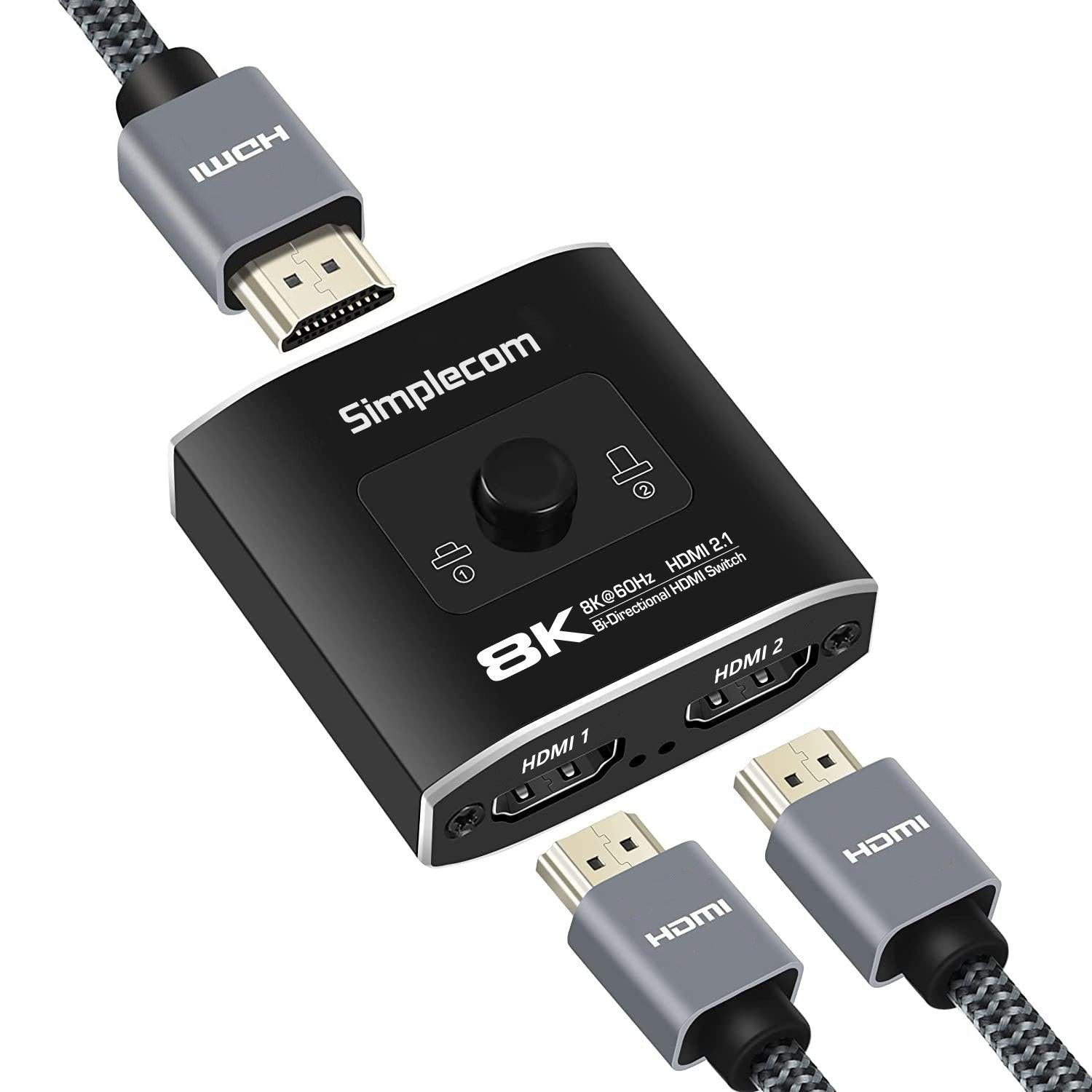

CM302v2 is bi-directional 2-way HDMI 2.1 switch than can be used to switch two different HDMI sources or HDMI displays. Toggle button allows you to quickly select a video source or displays, without having to swap cables.

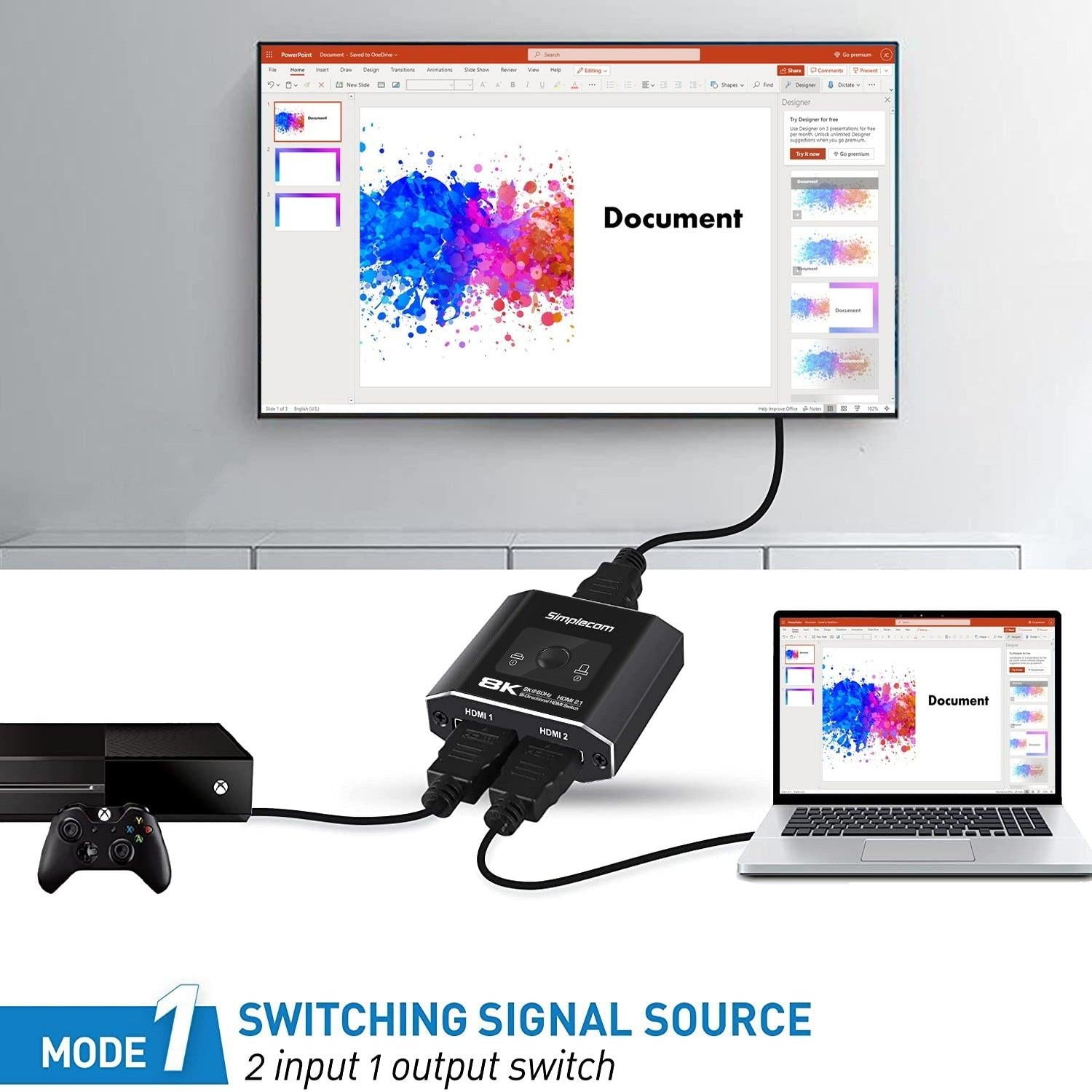

You can connect two HDMI sources, such as Game Consoles, PC, TV Box to one HDMI port on your TV or monitor, and allow two HDMI source devices to share one HDMI port on display. It also functions in the opposite direction, connecting an HDMI source to switch between two displays. Note that two screens cannot display simultaneously under 1 input 2 outputs mode.
This HDMI switch is HDMI 2.1 compliant, and provides high bandwidth up to 48Gbps. It supports video resolution up to 8K@60hz. Portable and compact size, easy to install. The durable aluminium alloy housing can efficiently dissipate heat to ensure durability and safe usage.
Features
- Bi-Directional HDMI 2.1 switch for toggling between 2 HDMI sources or displays
- Quickly switch video sources or displays without having to swap cables
- Durable aluminium alloy casing, also efficiently dissipate heat
- Portable and compact size, easy to install
- HDMI 2.1 compliant, support bandwidth up to 48Gbps
- Support HDMI video resolution up to 8K@60hz
- HDCP 2.3 compliant, wide compatibility with most HDMI source devices
- Powered by HDMI source device, no external power required
Specifications
- Model: CM302v2
- HDMI Version: HDMI 2.1
- Video Resolution Support: up to 1080@240Hz, 4K@120Hz, 8K@60Hz
- Audio Format Support: DTS-HD, Dolby True HD, Dolby Digital, Dolby Atmos, LPCM 7.1
- HDR Format Support: HDR10
- HDCP Version Support: HDCP 2.3
- Max Bandwidth: 48Gbps
- Max cable distance: Input<2M, Output<2M
- Max Operation Current: 15mA
- Power Input: USB DC 5V (Backup power only)
- Operating Temperature: (-15 to +55°C)

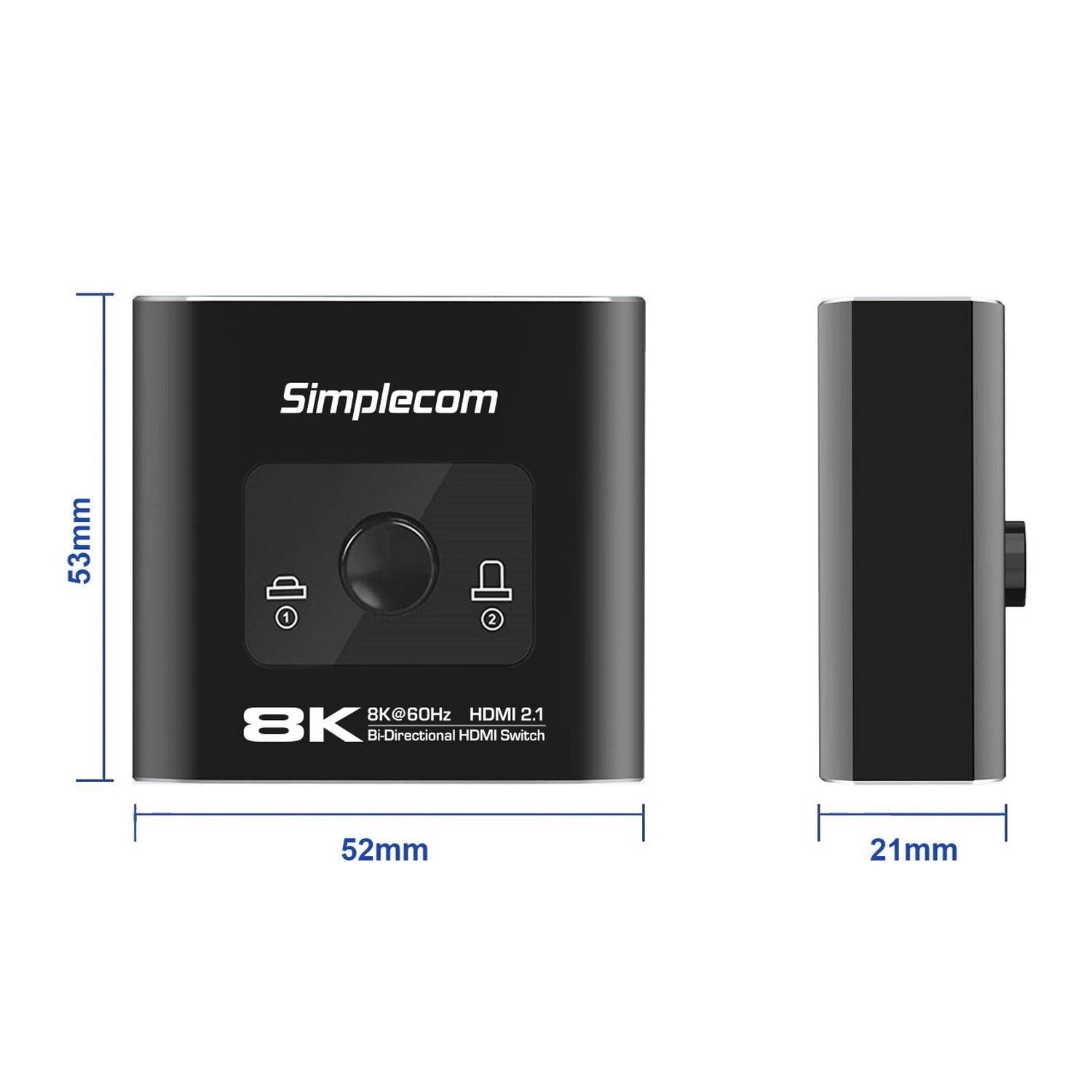

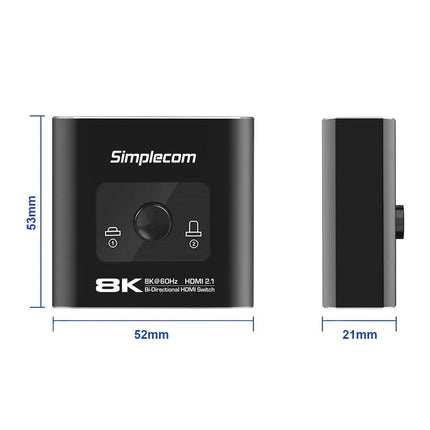

- Dimension (L x W x H): 53x52x21mm
- Weight: 45g
Package Contents
- 1 x Bi-Directional HDMI Switch
- 1 x HDMI cable
- 1 x User Manual
Important Notes:
- The length of the HDMI cable connected to both ends of the switch should not exceed 2 meters.
- This is a manual HDMI switch and does not support automatic switching.
- Powered by HDMI source device, with USB-C port for backup power if no enough power from HDMI.

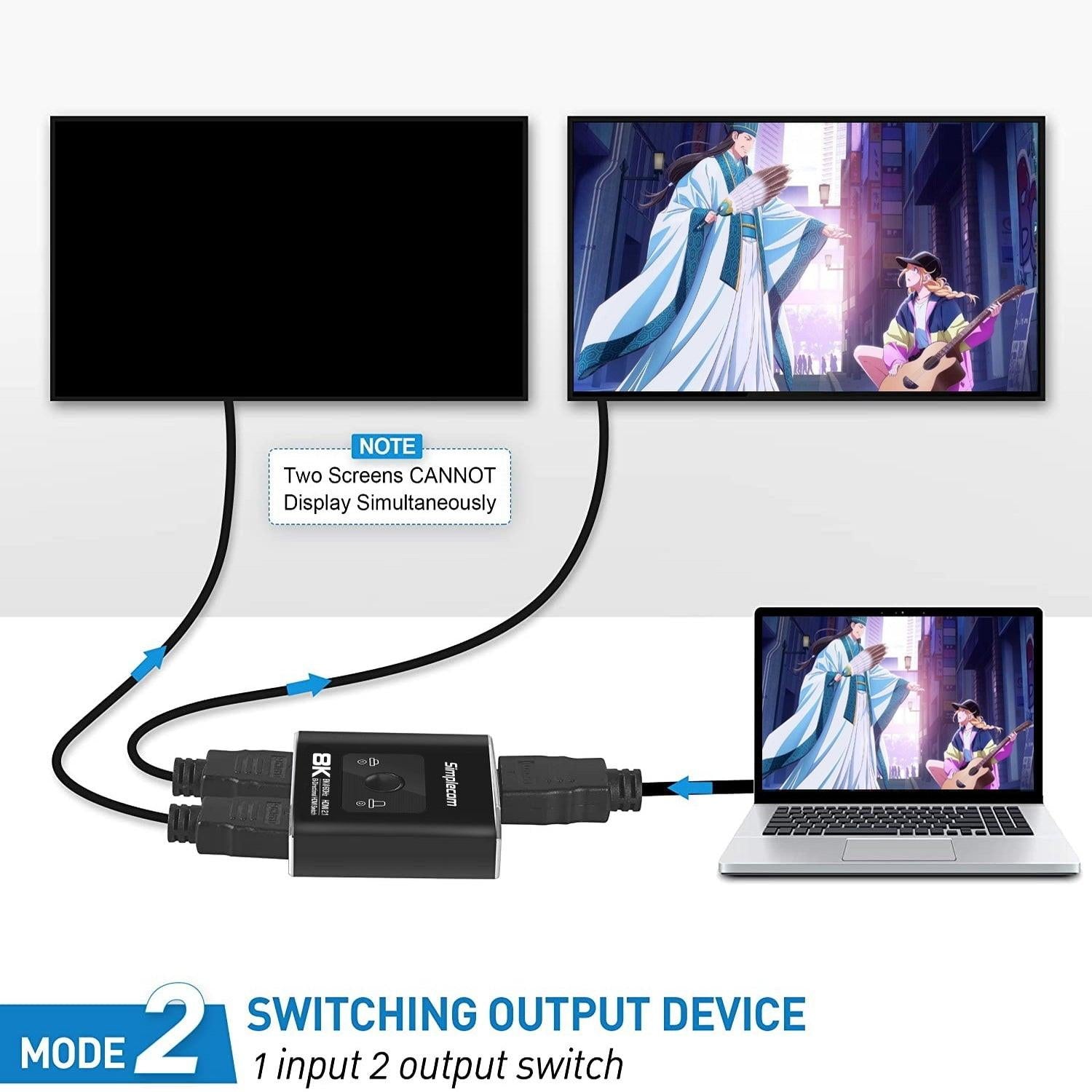

- Two screens cannot display simultaneously under 1 Input 2 Outputs mode.
