Description
Solar Panel Fan Kit – 16W Monocrystalline Solar Powered Ventilation System with Dual Fans
Keep your space cool, fresh, and eco-friendly with this high-efficiency 16W monocrystalline solar-powered fan kit. Designed for easy installation and sustainable operation, this solar exhaust fan system features a durable framed solar panel and two powerful DC fans that automatically activate in sunlight—perfect for homes, sheds, greenhouses, pet houses, RVs, and more.
No wiring. No batteries. No electricity bills. Just clean, renewable energy powering efficient ventilation wherever the sun shines.
Key Features:
-
High-Efficiency Monocrystalline Solar Panel: 16W output with advanced cell technology ensures optimal power generation even under partial sunlight conditions.
-

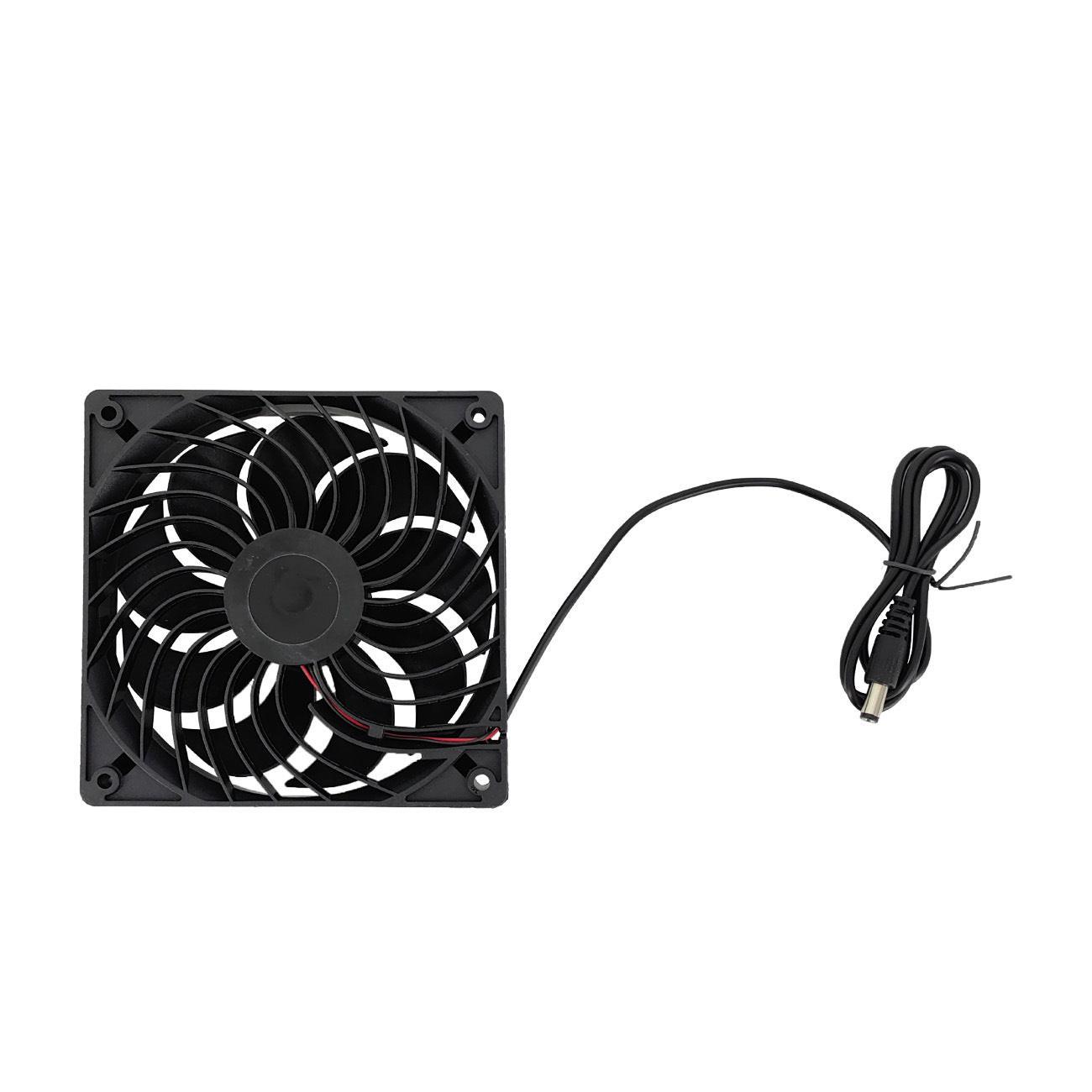

Dual 12cm DC Cooling Fans: Two high-speed fans (up to 3000 RPM) work together to expel hot air and improve airflow, effectively lowering indoor temperatures.
-
Automatic Operation: Fans start automatically when sunlight hits the panel. Performance adjusts based on light intensity—slower in low light, stops completely at night or in shade.
-
Easy Plug-and-Play Setup: Simply place the solar panel in direct sunlight, connect the included Y-splitter cable to both fans, and enjoy instant cooling. No complex wiring or tools required.
-
Weatherproof & Durable Design: Solar panel features an epoxy resin surface lamination and IP65 waterproof rating—resistant to dust, rain, UV exposure, and harsh outdoor conditions.
-
Lightweight & Compact: Solar panel weighs only 280g and is framed for added strength and ease of mounting.
-
Flexible Power Options: Can be powered by the solar panel or connected to a 12V battery (not included) for continuous use during cloudy days or nighttime.
-
Eco-Friendly & Safe: Zero emissions, no fuel consumption, and no electrical hazards—ideal for safe use around pets, children, and sensitive environments.
-
Wide Application Range: Ideal for:
- Greenhouses
- Pet houses and animal enclosures
- Storage sheds and garages
- RVs, campers, and trailers
- Home patios, attics, and crawl spaces
- Outdoor cabins and garden rooms
Product Specifications:
| Item |
Specification |
| Solar Panel Type |
Monocrystalline Silicon |
| Maximum Power (Pmax) |
16W |
| Open Circuit Voltage (Voc) |
8V |
| Maximum Power Voltage (Vmpp) |
6V |
| Short Circuit Current (Isc) |
3A |
| Maximum Power Current (Impp) |
2.6A |
| Output |
DC |
| Standard Test Conditions |
AM = 1.5
Irradiance = 1000 W/m²
Temperature = 25°C |

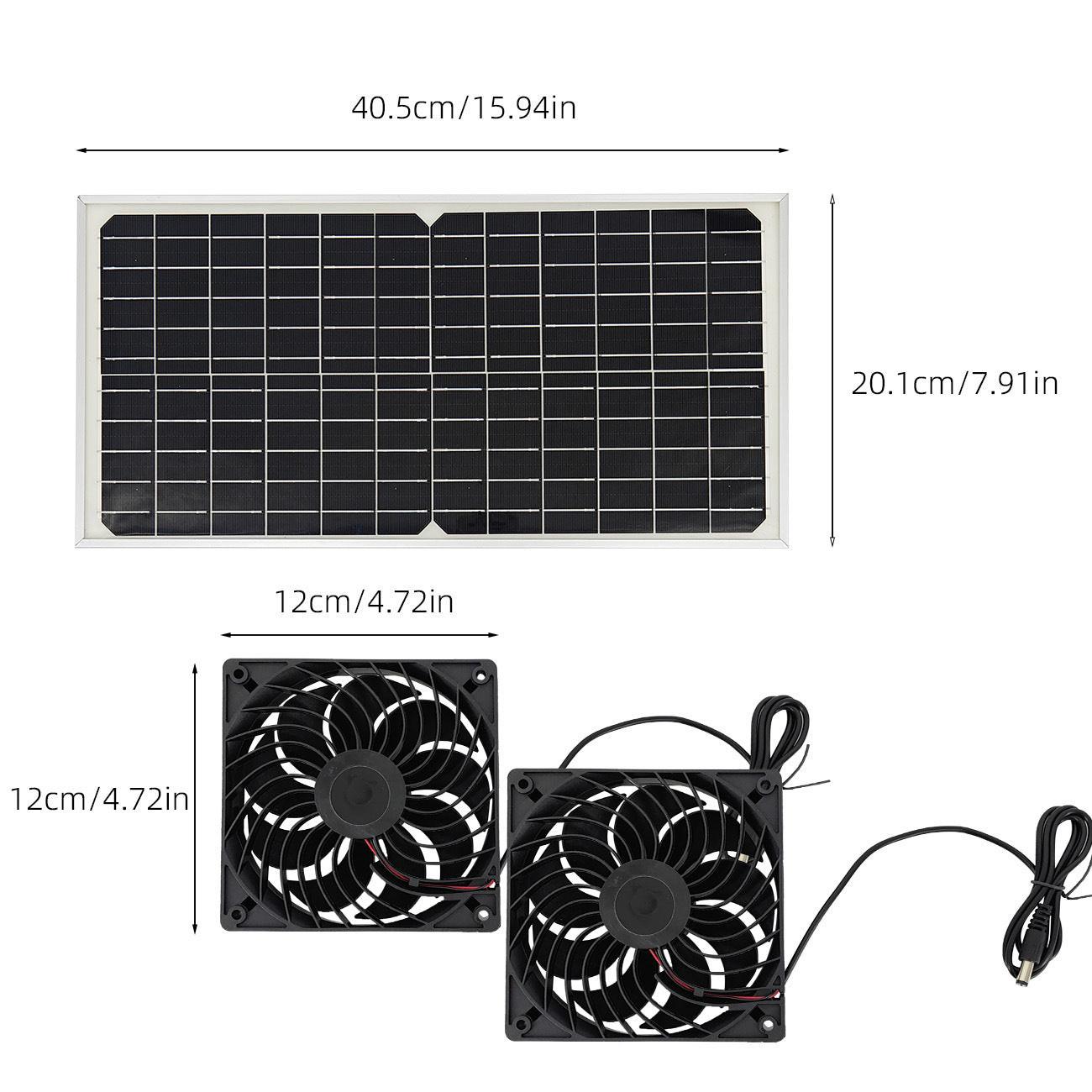

| Solar Panel Dimensions |
40.5cm × 20.1cm (15.94in × 7.91in) |
| Fan Size |
12cm × 12cm (4.72in × 4.72in) |
| Solar Panel Weight |
280g |
| Waterproof Rating |
IP65 (dust-tight, protected against water jets) |
| Operating Temperature |
-20°C to +80°C (-4°F to 176°F) |

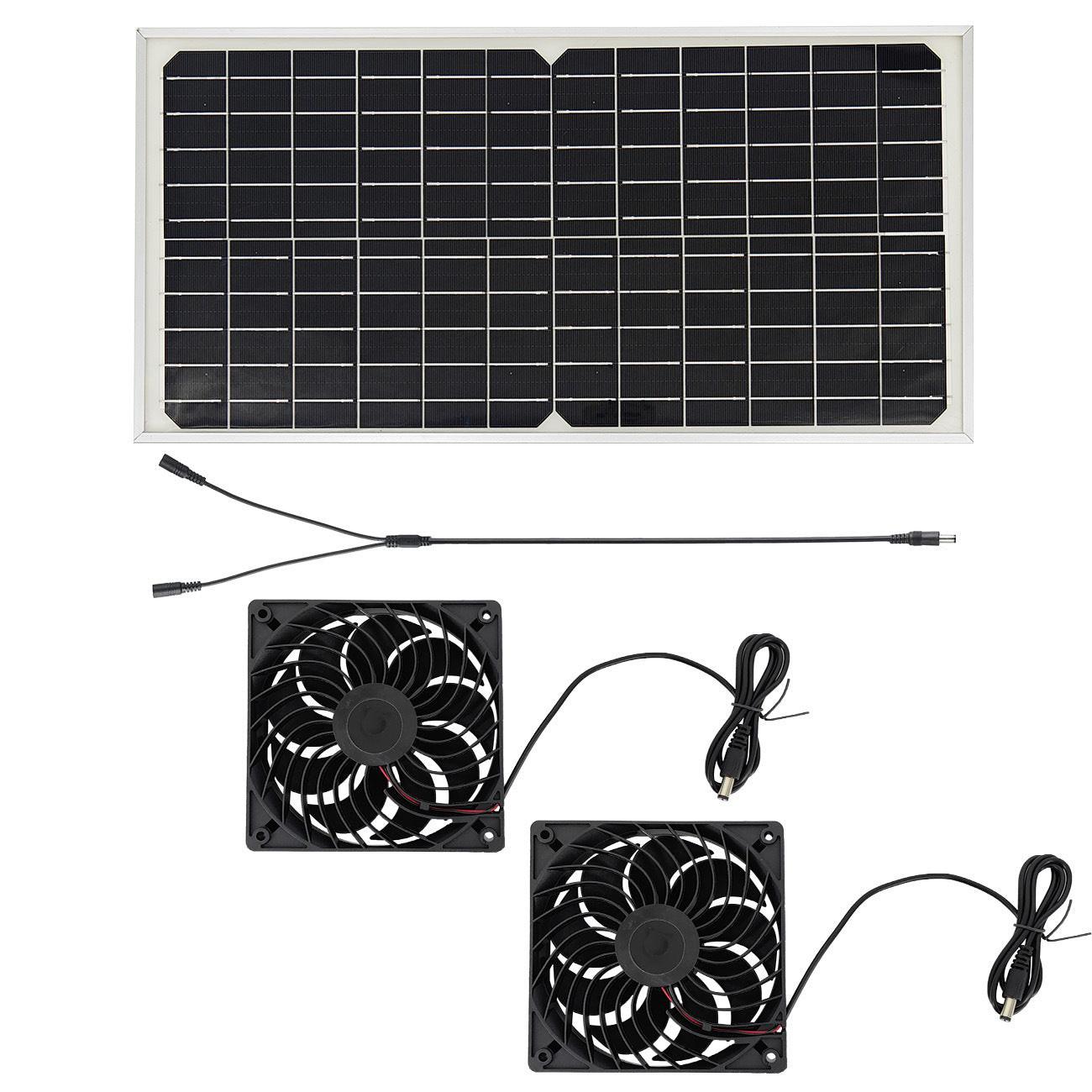

Package Includes:
- 1 × 16W Monocrystalline Solar Panel (with frame)
- 2 × 12cm DC Cooling Fans
- 1 × Y-Splitter Power Cable (connects one solar panel to two fans)
- 1 × User Manual (multilingual instructions)
Installation Tips:

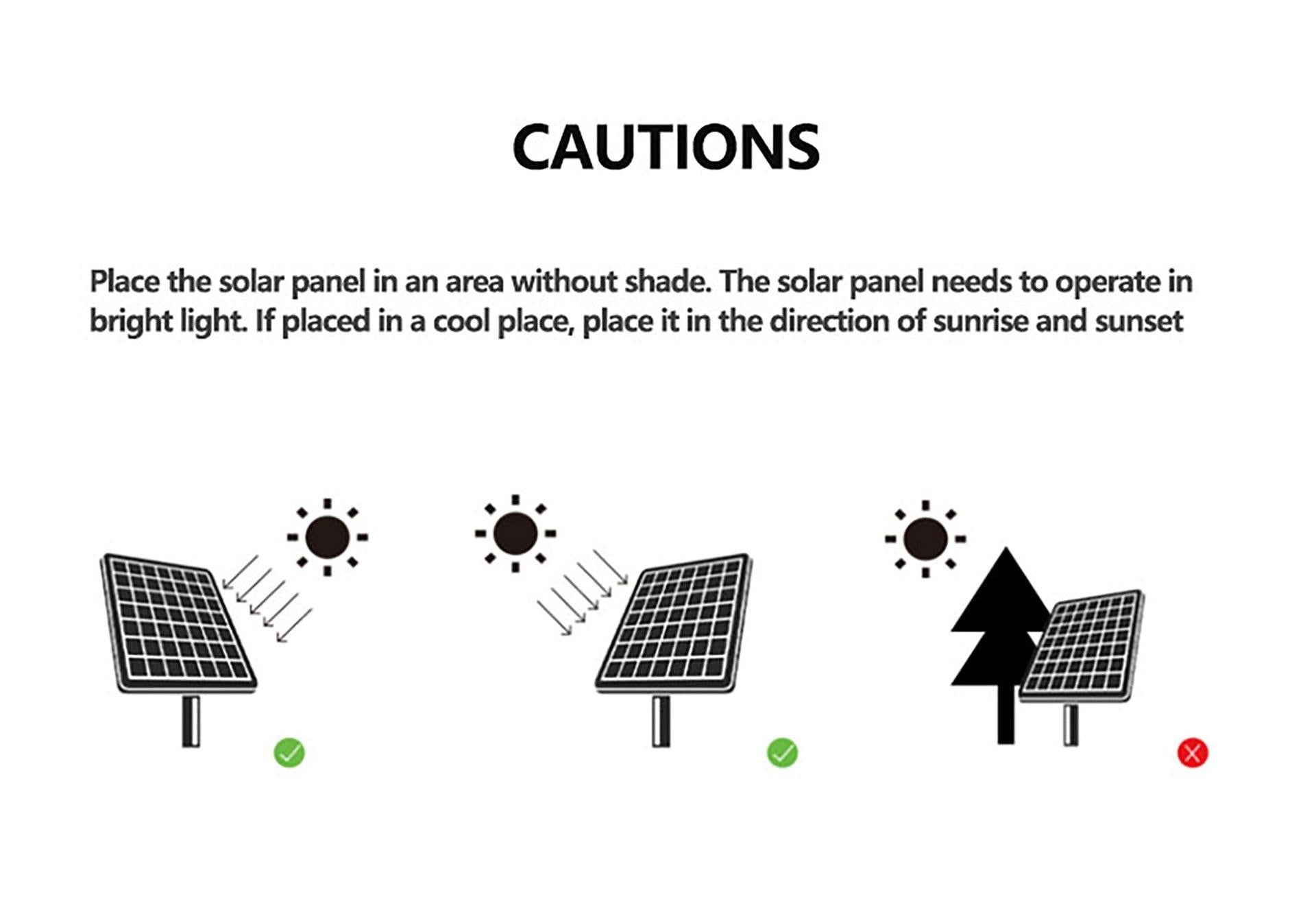

- Place the solar panel in a location with maximum sun exposure—no shade, preferably facing south (in the Northern Hemisphere) or north (in the Southern Hemisphere).
- Mount securely on roof, wall, or window using screws or adhesive brackets (not included).
- Ensure fans are installed in a vented area where hot air can escape—e.g., attic, greenhouse ceiling, or pet house side wall.
- For continuous operation, connect to a 12V deep-cycle battery (sold separately) via charge controller.
How It Works:
- The solar panel converts sunlight into DC electricity.
- Power flows through the splitter cable to both fans.
- Fans spin automatically—speed increases with stronger sunlight.
- Hot air is expelled from the enclosed space, promoting natural cooling.
Why Choose This Solar Fan Kit?
This solar-powered ventilation system offers a smart, sustainable solution for temperature control without relying on grid electricity. With its robust build, automatic function, and simple setup, it’s perfect for anyone looking to reduce energy costs, improve air circulation, and create a healthier environment for pets, plants, or storage areas.
Whether you're running a small greenhouse, keeping your doghouse cool in summer, or ventilating a cluttered shed, this dual-fan solar kit delivers reliable performance powered entirely by the sun.
Care Instructions
• Clean solar panel regularly with soft cloth and mild soap to maintain efficiency.
• Avoid placing objects or dirt on the panel surface.
• Store indoors during extreme weather or long periods of non-use.
• Do not disconnect while exposed to strong sunlight to prevent voltage spikes.
