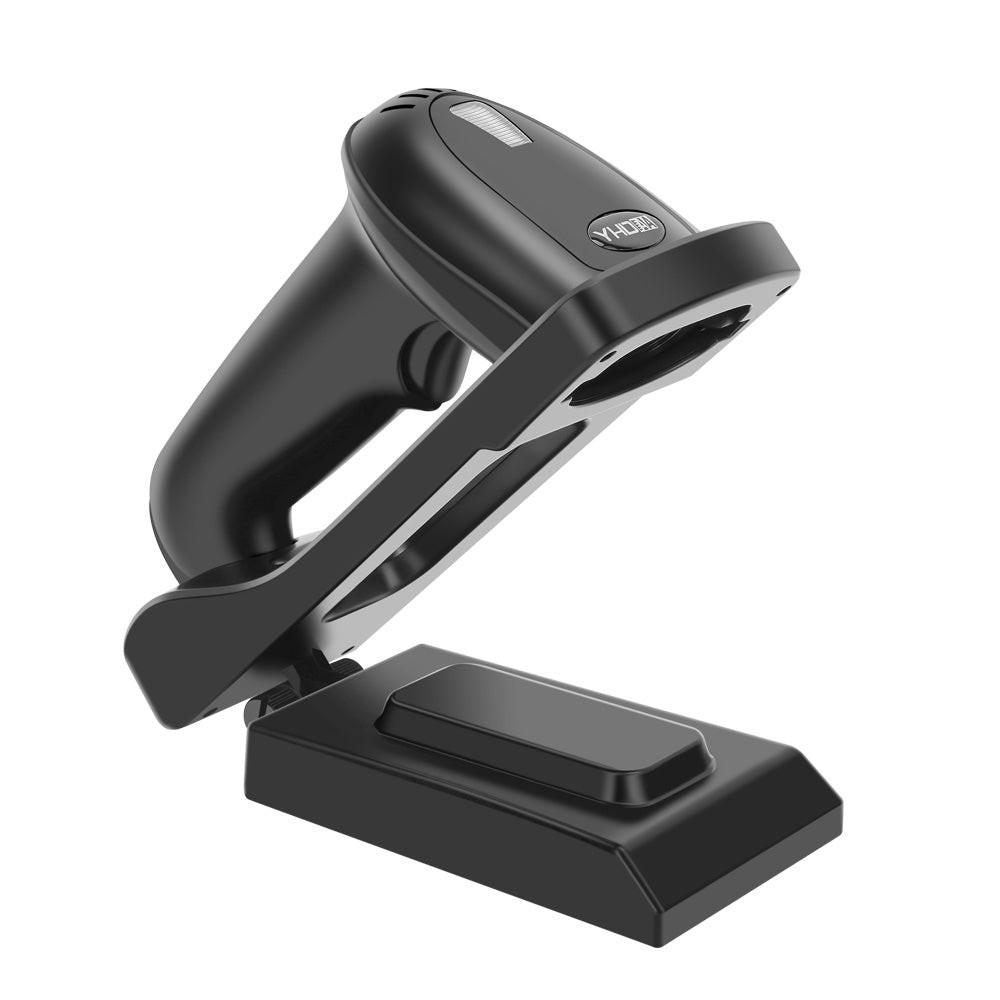

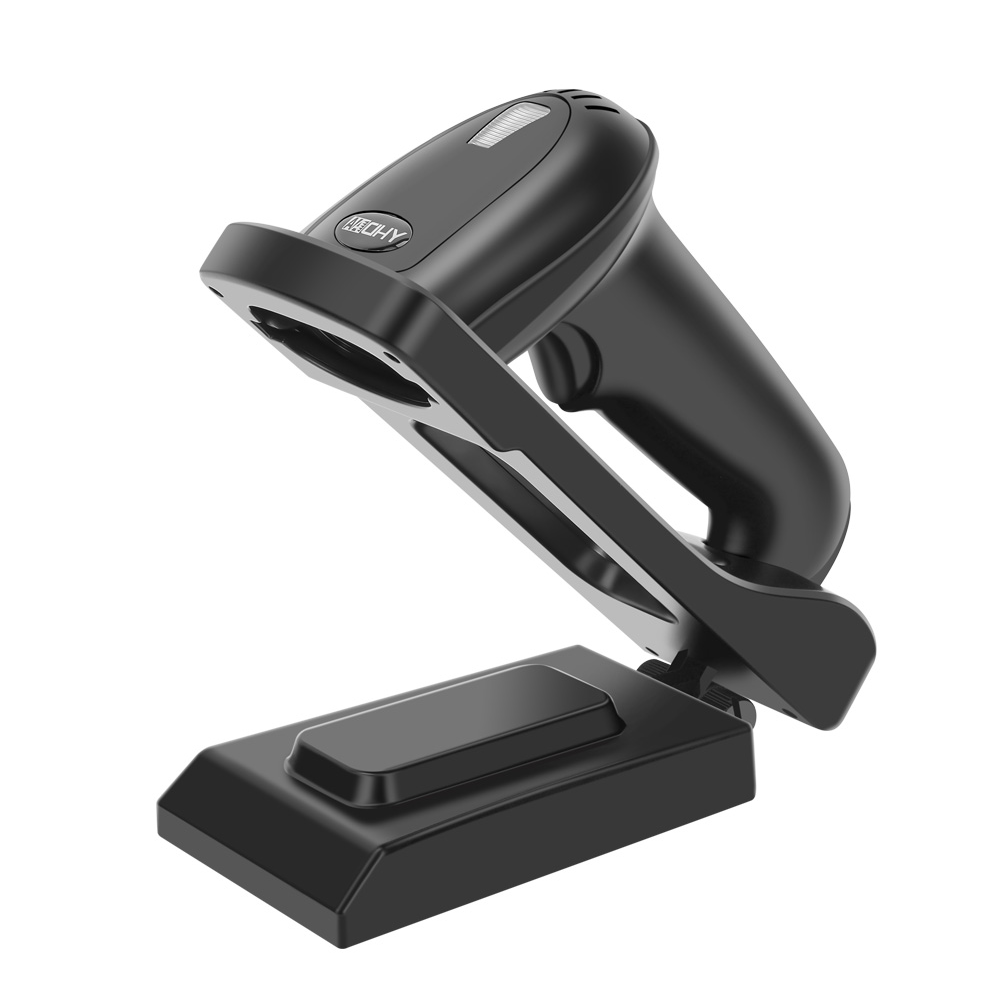

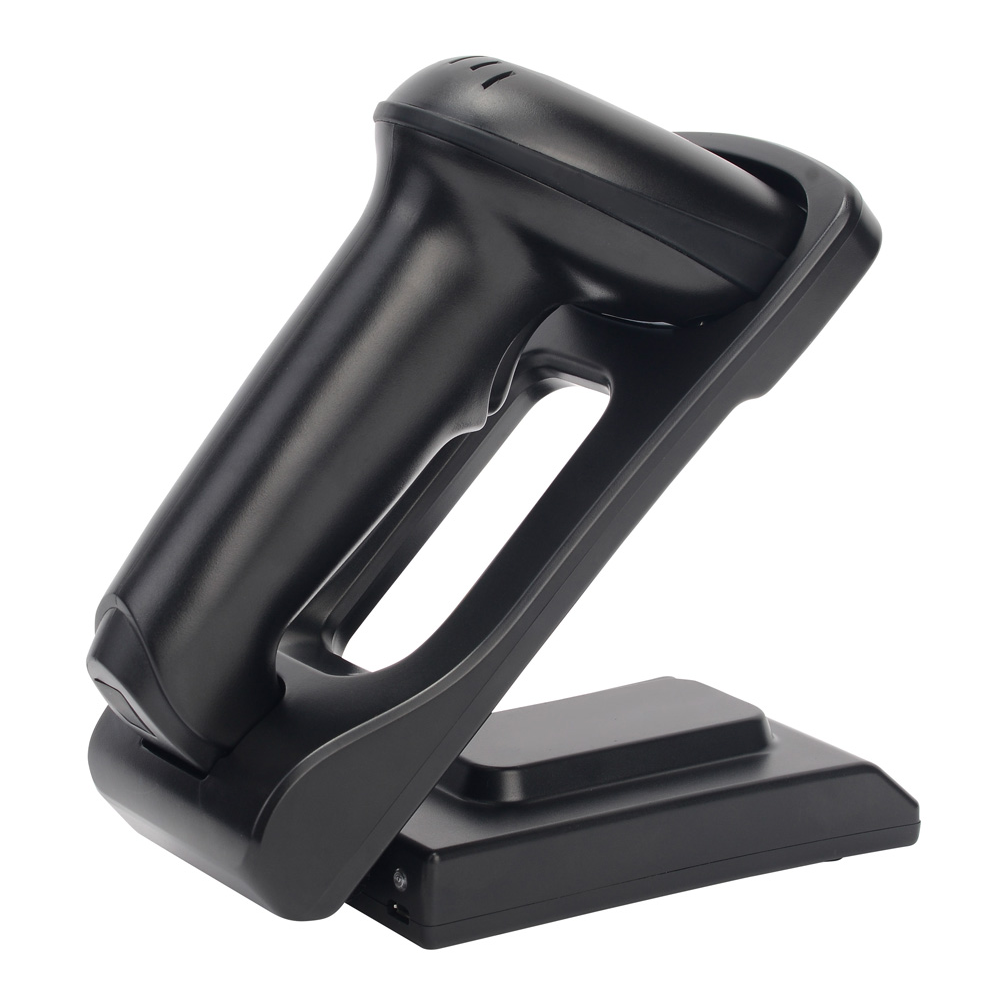

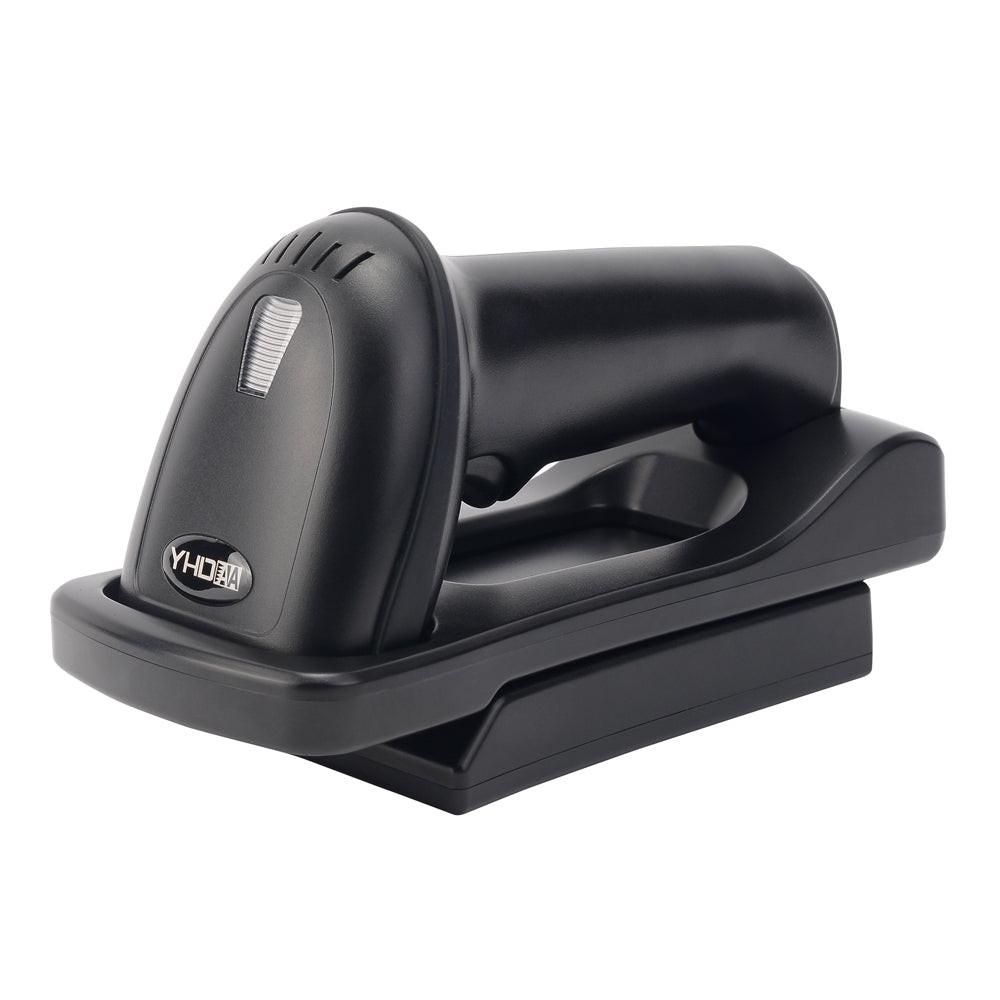

YHDAA YHD-5800DB 2D Wireless Bluetooth Barcode / QR Code Scanner with Stand (Black)

Description

  • HID/SPP Mode and can switch.
  • Supports Bluetooth/2.4G wireless, 2modes for option.
  • Supports Handheld/Continuous/Auto-Induction , 3modes for option.
  • Support over sixteen different countries' keyboard layout.
  • Excellent decoding ability, high speed and low error rate.
  • Built-in 2600mAh battery, super-long standby time.
  • Comes with adjustable scanner stand, Base supports data transmission and battery charging.
  • Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
  • It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and
  • computer screen, and it also can read 2D barcodes.
  • Can be customized according to customer demand.

    • Technical parameters

    V28-ELEINTYHD5800DB

    Product Specification: YHD-5800DB  2D Wireless Bluetooth Barcode Scanner

    Scanner parameters:

    Transmission mode: Bluetooth/2.4G/Wired

    Storage: 100,000 barcodes

    Distance: 50m/100m/1.5m

    Sensor: 640 × 480 CMOS

    CPU: ARM 32-bit Cortex

    Battery: 3.7V-2600mAh

    Indication: Buzzer & LED

    Light aimer:617nm LED

    Resolution: 4mil

    Anti-inference: 0-100000Lux Max

    Decoding speed: 500scans/sec

    Illumination:6500K LEDs

    Printing Contract: ≥25%

    Interface: USB, USB-COM

    Button life: 8000,000 times

    Material: ABS+PC

    Trigger Mode: Handheld,Continuous,Auto-Induction

    Depth

    Of

    Field

    13mil-EAN13

    50-250mm

    4mil-code39

    60-100mm

    20mil-QR

    40-300mm

    10mil-PDF417

    40-280mm

    Decode Capability:

    1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

    Coda bar, MSI Plessey, RSS, etc.

    2D:  QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

    Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

    Working current: 3.3Vx200mA

    Standby current: 18uA-5mA

    Working time: 3 to 10 days

    Charging power: 5V-400mA

    Certificate: CE, FCC, RoHS, IP54

    Drop  test: 2m

    YHDAA YHD-5800DB 2D Wireless Bluetooth Barcode / QR Code Scanner with Stand (Black)

    Product form

    HID/SPP Mode and can switch. Supports Bluetooth/2.4G wireless, 2modes for option. Supports Handheld/Continuous/Auto-Induction , 3modes for option. Support over sixteen different countries'... Read more

    SKU: V28-ELEINTYHD5800DB

    22 in stock

    $109.95  $83.95

      • ↩️ 14-Day Change-of-Mind Returns
        Subject to eligibility and our Returns Policy. Your rights under Australian Consumer Law continue to apply.

      • Secure checkout powered by Shopify.

        shop pay
      • Shipping options vary by product and delivery postcode
      • ABN: 24 621 799 273
      Buy Now, Pay LaterBuy Now, Pay Later

      Choose an available pay-later option at checkout, subject to the provider's eligibility criteria and terms.
      Simple, secure checkout with flexible payment options.
      Read more

      Description

    • HID/SPP Mode and can switch.
    • Supports Bluetooth/2.4G wireless, 2modes for option.
    • Supports Handheld/Continuous/Auto-Induction , 3modes for option.
    • Support over sixteen different countries' keyboard layout.
    • Excellent decoding ability, high speed and low error rate.
    • Built-in 2600mAh battery, super-long standby time.
    • Comes with adjustable scanner stand, Base supports data transmission and battery charging.
    • Support for smart phones/tablets/computers; compatible for Windows /Android /IOS.
    • It can read not only all kinds of 1D barcodes on paper but also barcodes on the mobile phone and
    • computer screen, and it also can read 2D barcodes.
    • Can be customized according to customer demand.

      • Technical parameters

      V28-ELEINTYHD5800DB

      Product Specification: YHD-5800DB  2D Wireless Bluetooth Barcode Scanner

      Scanner parameters:

      Transmission mode: Bluetooth/2.4G/Wired

      Storage: 100,000 barcodes

      Distance: 50m/100m/1.5m

      Sensor: 640 × 480 CMOS

      CPU: ARM 32-bit Cortex

      Battery: 3.7V-2600mAh

      Indication: Buzzer & LED

      Light aimer:617nm LED

      Resolution: 4mil

      Anti-inference: 0-100000Lux Max

      Decoding speed: 500scans/sec

      Illumination:6500K LEDs

      Printing Contract: ≥25%

      Interface: USB, USB-COM

      Button life: 8000,000 times

      Material: ABS+PC

      Trigger Mode: Handheld,Continuous,Auto-Induction

      Depth

      Of

      Field

      13mil-EAN13

      50-250mm

      4mil-code39

      60-100mm

      20mil-QR

      40-300mm

      10mil-PDF417

      40-280mm

      Decode Capability:

      1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Standard 2 of 5,

      Coda bar, MSI Plessey, RSS, etc.

      2D:  QR Code, Data Matrix, PDF417, Aztec code, Maxicode, etc.

      Scanning angle: Angle of rotation360°, inclination± 65°, declination ± 60°

      Working current: 3.3Vx200mA

      Standby current: 18uA-5mA

      Working time: 3 to 10 days

      Charging power: 5V-400mA

      Certificate: CE, FCC, RoHS, IP54

      Drop  test: 2m
